9. Remove each switch button from the Panel Cover.

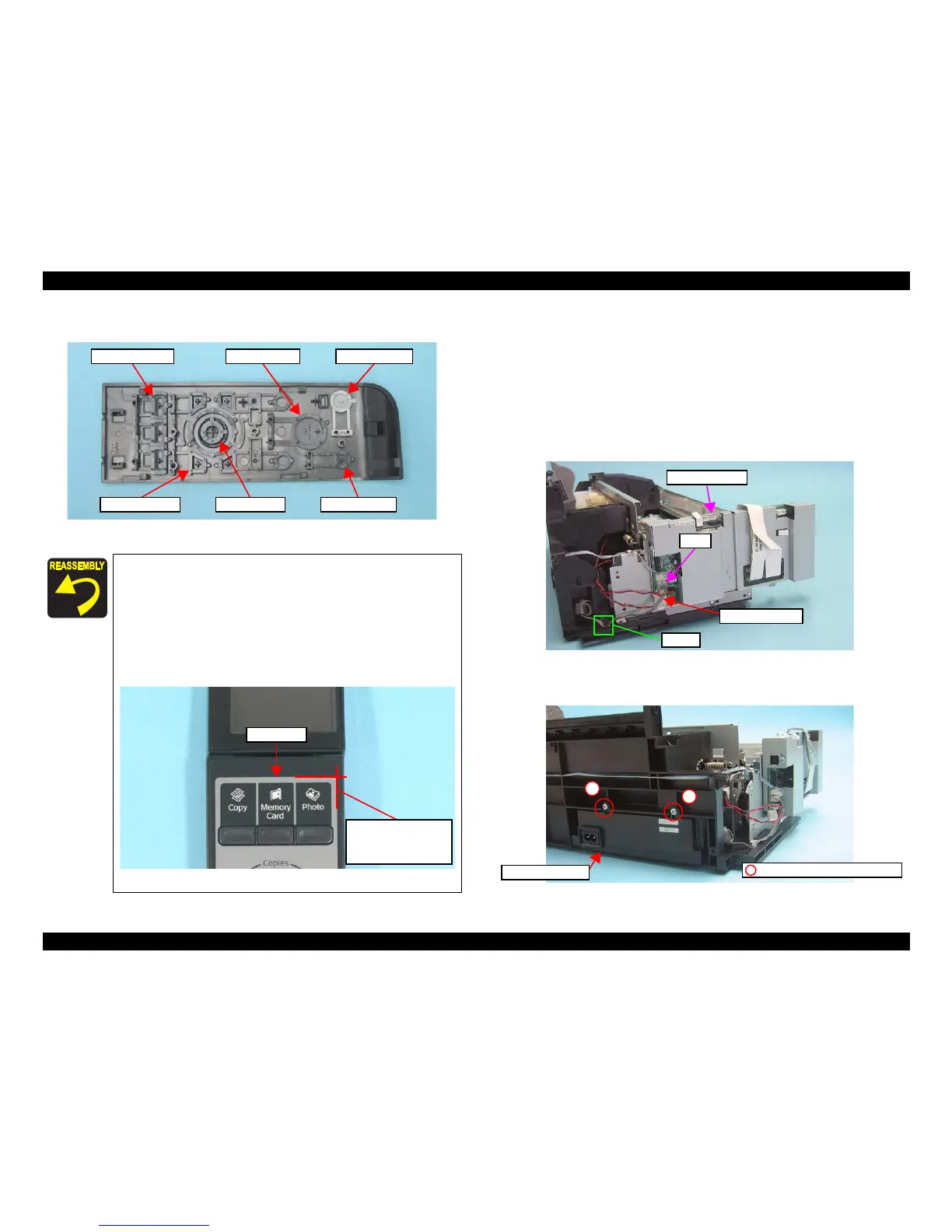

Figure 4-24. Removing the Switch button
4.4.3 Power Supply Unit
 Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit/Upper Housing/Card Slot
Cover/Lower Housing
 Removal procedure
1. Disconnect the connector of the Power Supply Unit (CN1) on the Main
Board.
2. Release the Power Unit Cable from the hook of the Base Frame.
Figure 4-26. Removing the Power Supply Unit (1)
3. Remove the screws (x2) that secure the Power Supply Unit.
4. Lift the Base Frame a little, and remove the Power Supply Unit.
Figure 4-27. Removing the Power Supply Unit (2)
 When installing the Panel Board, match the positioning holes
of the Panel Board with their positioning pins of the Panel
Housing as shown in
Figure 4-23.
 Tighten the screws in the order given in Figure 4-23.
 The Panel Sheet is not included in the ASP unit of the Panel
Unit. When replacing the Panel Unit, order the Panel Sheet
separately and attach it on the specified place as shown in the
figure below.
Figure 4-25. Panel Sheet Position
Power SW button
Stop SW button
Start SW button
OK SW button
Mode SW button
Panel SW button
Panel Sheet
Align the upper right
corner of the Panel Sheet
with the groove on the
Panel Unit.
CN1
Main Board Unit
Hook
Power Unit Cable
Power Supply Unit
C.B.P. 3x10, F/Zn-3C (6±1kgfcm)
1
2
