4.5.6 Front Frame/Right Frame
Parts/Components need to be removed in advance
Document Cover/ASF Cover/Scanner Unit/Panel Unit/Upper Housing/Card Slot
Cover/Lower Housing/Main Board Unit/Left Frame
Removal procedure
1. Remove the acetate tape (x1) that secures the Head FFC to the Front Frame.
2. Release the Head FFC from the hooks (x3) of the Front Frame.
3. Remove the Grounding Spring from the Front Frame.

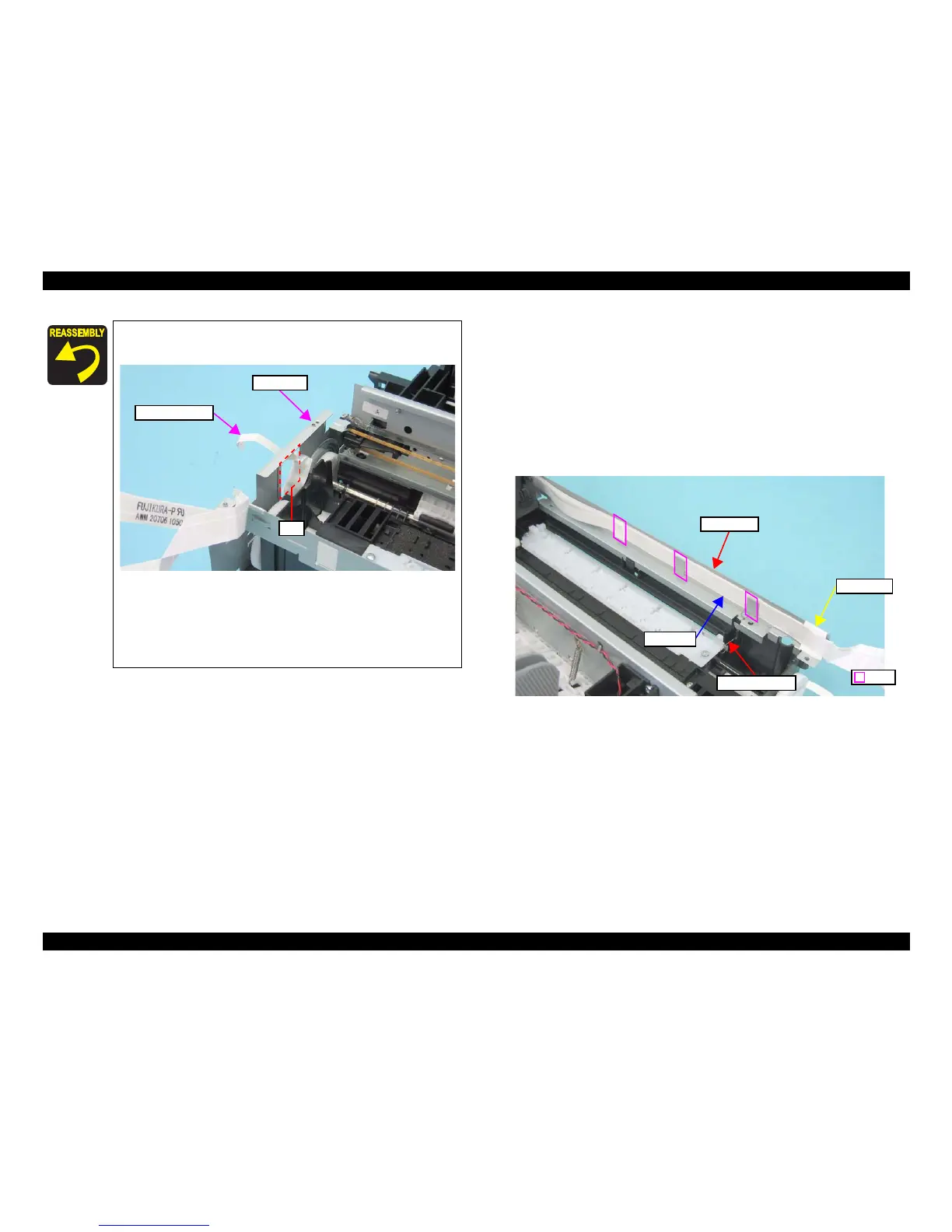

Figure 4-48. Removing the Front Frame/Right Frame (1)
When installing the Left Frame, lead the PF Encoder FFC
through the hole of the Left Frame.
Figure 4-47. Routing the PF Encoder FFC
When installing the Left Frame, match the guide pins (x2) of
the Base Frame with their positioning holes (x2) of the Left
Frame as shown in
Figure 4-46.
Tighten the screws in the order given in Figure 4-46.
