EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 112
Confidential

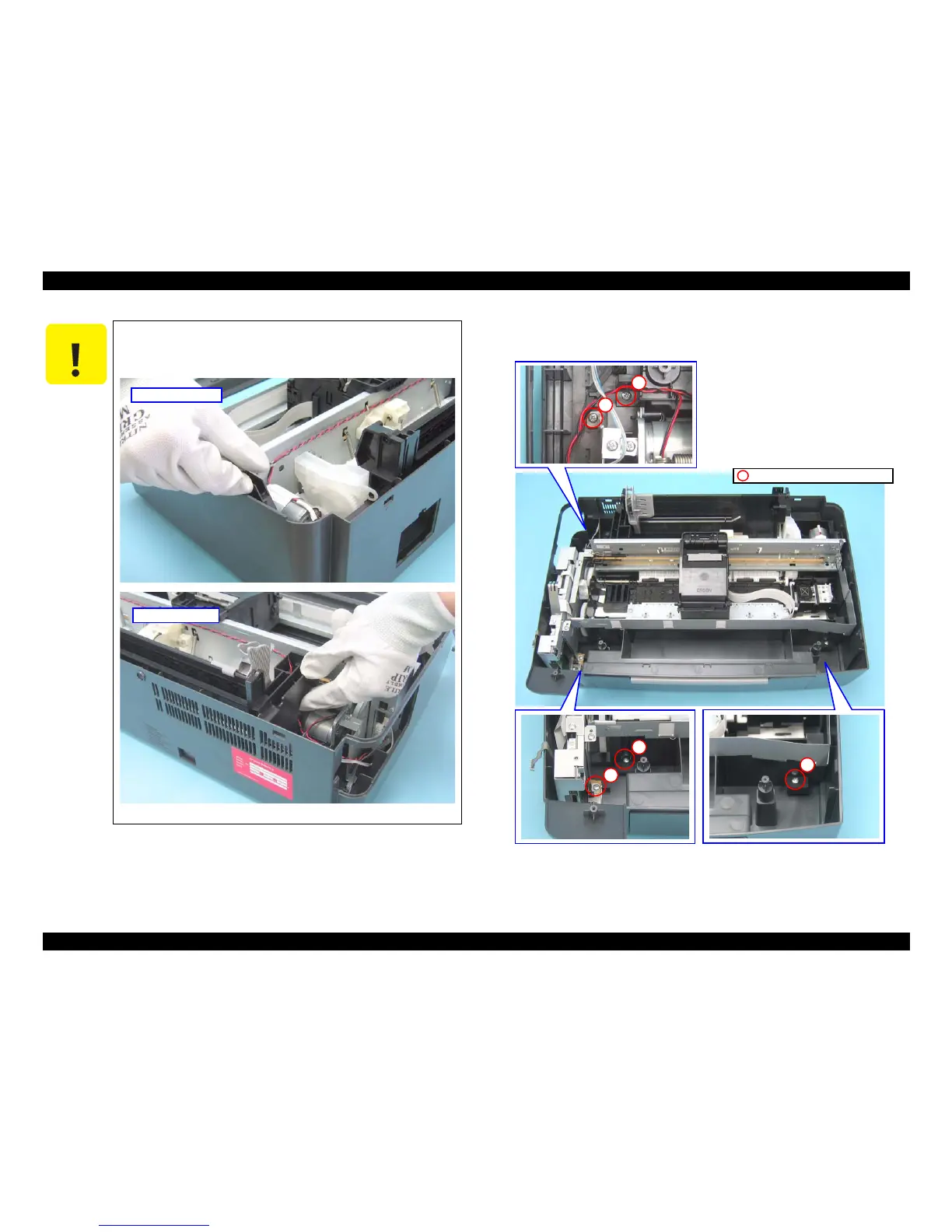

4. Remove the screws (x5) that secure the Printer Mechanism, and remove the
Printer Mechanism.
Figure 4-44. Removing the Printer Mechanism (2)
C A U T I O N
When lifting the Printer Mechanism, be sure to hold the positions
specified in the figure below to prevent the Main Frame from
being deformed.
Figure 4-43. Printer Mechanism Handling Precaution
Right Hand Position
Left Hand Position
2
3
1
4
5
C.B.P. 3x10, F/Zn-3C (6±1kgfcm)
