EPSON Stylus CX7300/CX7400/DX7400/NX200/TX200 series/SX200 series/Stylus CX8300/CX8400/DX8400/NX400/TX400 series/SX400 series Revision C
DISASSEMBLY/ASSEMBLY Disassembling the Printer Mechanism 130
Confidential

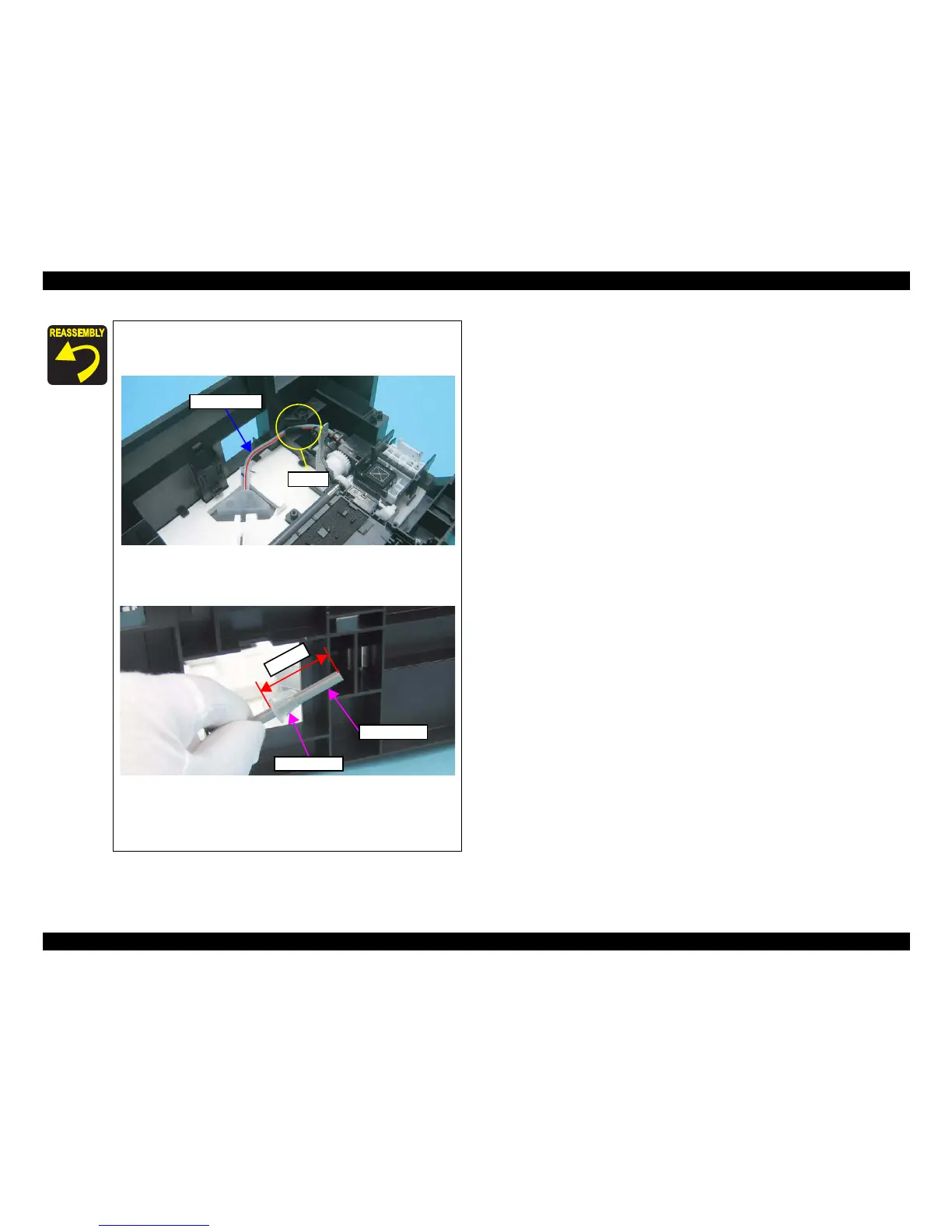

Route the Waste Ink Tube through the groove of the Base
Frame so that the red line of the Waste Ink Tube faces to the
Ink System Unit side.
Figure 4-93. Routing the Waste Ink Tube
Attach the Tube Stopper to the Waste Ink Tube as shown in
the figure below, and insert them into the Waste Ink Cover.
Figure 4-94. Installing the Waste Ink Tube
When inserting the Waste Ink Tube into the Waste Ink
Cover, make sure that there is no gap between the Tube
Stopper and Waste Ink Cover.
To Next Page
