Epson TM-C7500 Series User Manual

203
Appendix

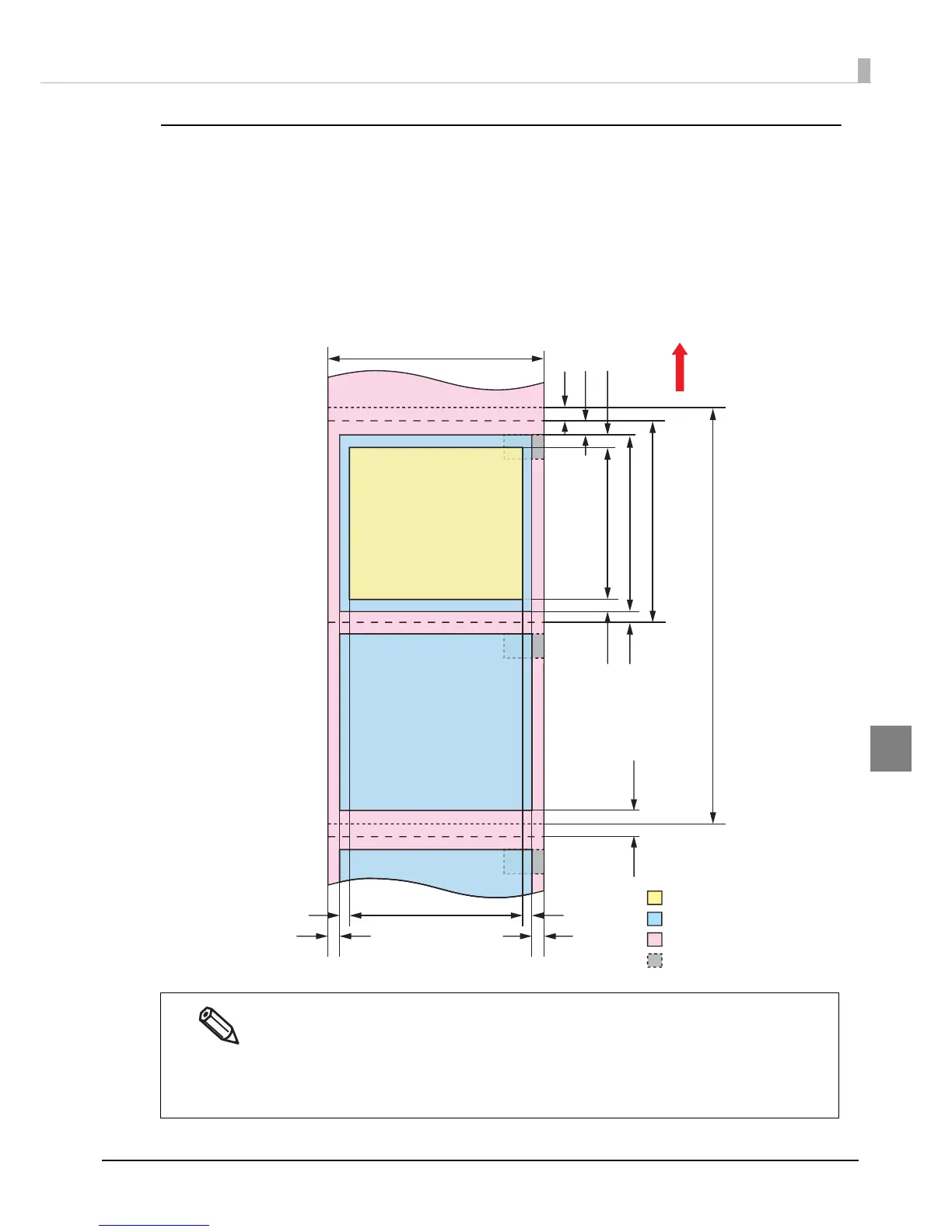

Die-cut label(Black mark) / Fanfold paper
When "Borderless Printing" is disabled
Ver tical margins: 1.5 mm {0.06"} (Typical value)
Lateral margins: 1.5 mm {0.06"} (Typical value)
 The distance from the paper cut position to the black mark leading edge must be at least 1.5
mm {0.06"}. If it is less than 1.5 mm {0.06"}, the printer may be unable to print pages
because it fails to sense their black marks or skips them, etc.
 The relation between the issuing pitch (Pm) and the interval of perforated lines (Ph) is as
follow: 
Pm = Ph x integral multiple.
Auto-cut position
Auto-cut position
Perforated line
Auto-cut position
Perforated line
Paper width
Paper feeding
direction
Black mark position
Paper
Label area
Print area
Print area width
Issuing pitch (Ph)
Interval of perforated lines (Pm)
Outer edge
(Removed)
2.0 mm { }
0.08”
Outer edge
(Removed)
2.0 mm { }
0.08”
0.5 to 1 mm { }
0.02 to 0.04”
1.5 to 3.0 mm { }
0.06 to 0.12”
1.5 mm { }
0.06”
25.4 mm { } or more
1.0”
28.4 mm { } or more
1.12”
22.4 mm { } or more
0.88”
1.5 to 3.0 mm { }
0.06 to 0.12”
1.5 mm { }
0.06”
1.5 to 3.0 mm { }
0.06 to 0.12”
1.5 mm
{ }
0.06”
1.5 mm
{ }
0.06”

Epson TM-C7500 Series Specifications

General

Resolution	600 x 1200 dpi
Colours	Cyan, Magenta, Yellow, Black
Power Supply	Internal
Print Speed	Up to 300 mm/sec
Media Width	2" (50 mm) - 4.25" (108 mm)
Interface	USB, Ethernet
Weight	Approximately 37 kg
Print Width	4.09" (104 mm)
Media Types	Roll
Supply Voltage	AC 100-240V, 50/60 Hz
Media Thickness	0.08 to 0.2 mm
