27
Chapter 2 Setup

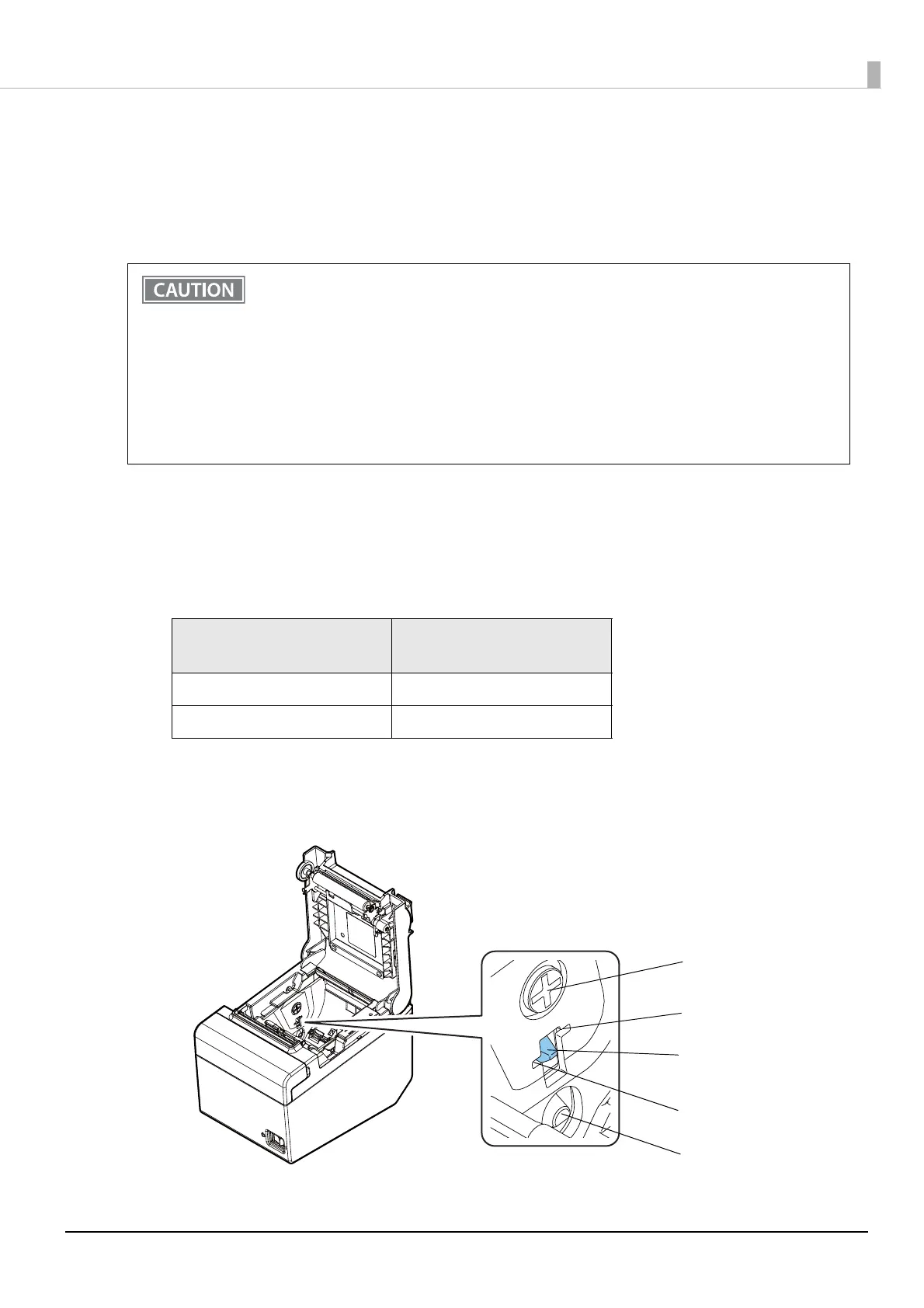

Adjusting the Roll Paper Near-End Sensor
Below are two situations where a roll paper near-end sensor adjustment is required.
• To adjust the detection position to suit the diameter of the roll paper core used.
• To adjust the detection position of remaining amount of paper.
Follow the steps below to adjust the roll paper near-end sensor.
1
Open the roll paper cover, and remove the roll paper.
2
Loosen the adjustment screw fastening the sensor, and align the upper edge of the
positioning plate with the adjustment position.
3
Tighten the adjustment screw.
4
After adjustment, make sure that the detection lever operates smoothly.
• The roll paper near-end detection function can be used only when this product is installed
horizontally.
• Be sure to disable the near-end detection when the product is installed vertically or is wall-
mounted. Failure to do so may lead to erroneous detection.
• Since roll paper cores vary slightly in shape, depending on paper roll design and manufacturing
tolerances, it is impossible to detect the remaining paper exactly.
• Use roll paper with a core inner diameter of 12 mm {0.47"} and outer diameter of 18 mm {0.71"}
so that the near-end sensor can detect the remaining paper as accurately as possible.
• To use the near-end detection, it must be enabled using the memory switches. See "Software
Setting Mode" on page 53 for details about the making the memory switch settings.
Adjustment position
Remaining amount of paper
(outer diameter)
Upper Approx. 27 mm {1.06"}
Lower (Default setting) Approx. 23 mm {0.97"}
Adjustment screw
Positioning plate
Detection lever
Upper position
Lower position
To Next Page
