Attaching the Customer Display
If you use the product with the optional customer display, follow the steps below.
1
Turn over the main body on its front.
2
Align the 3 screw holes on the bundled base with those on the pole
mounting plate, and secure the base with the 3 screws included in the
customer display package.
3
Pass the USB cable through the cable hole on the pole mounting plate.

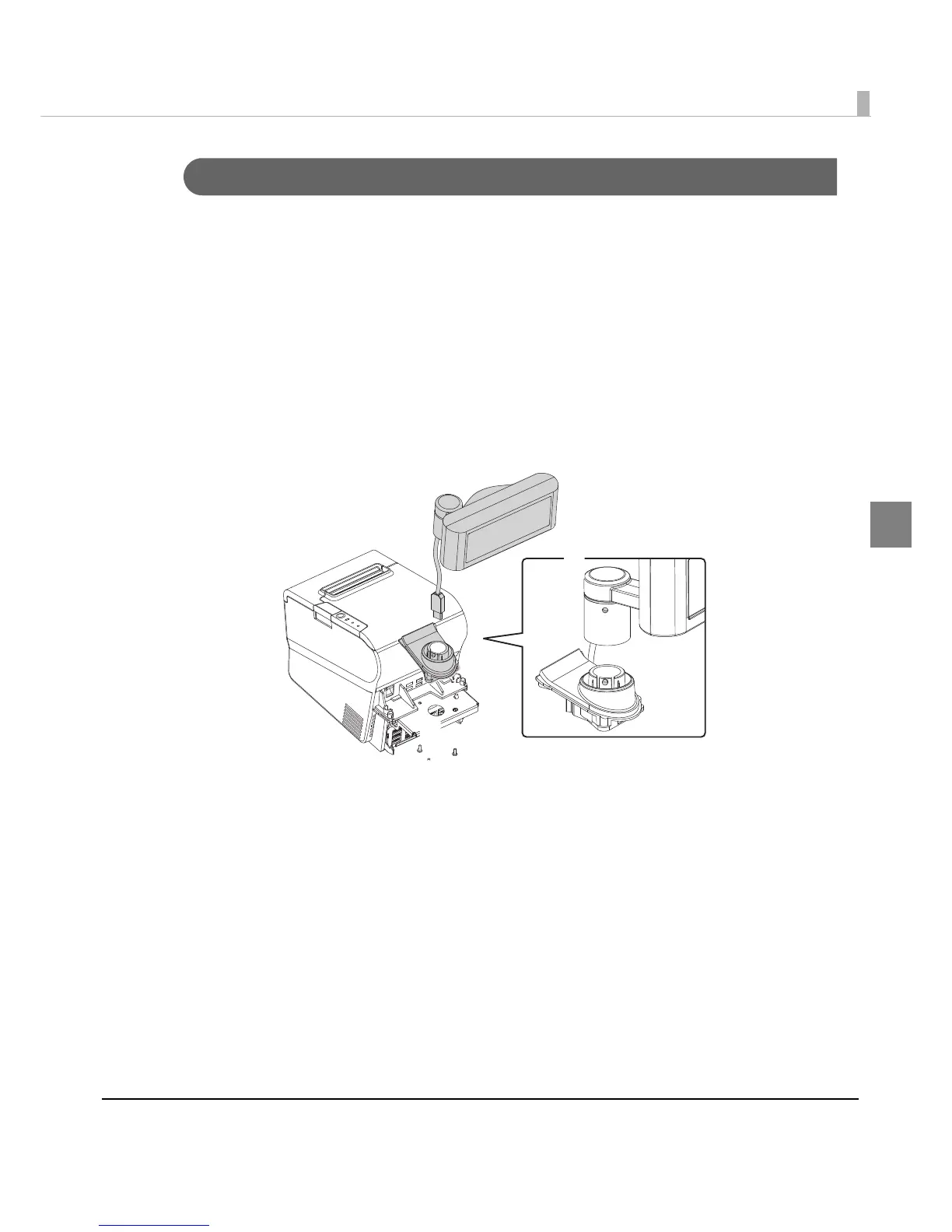

See Illustration ❶.
4
Align the dowels on the L-shaped pole and the base, and attach the L-
shaped pole with the base. See Illustration ❷.
5
Connect the USB cable with one of the USB connectors.
To Next Page
