Epson VT6L

Maintenance 15. AMP Board
222 VT Rev.1
AMP
Board
Installation
(1)

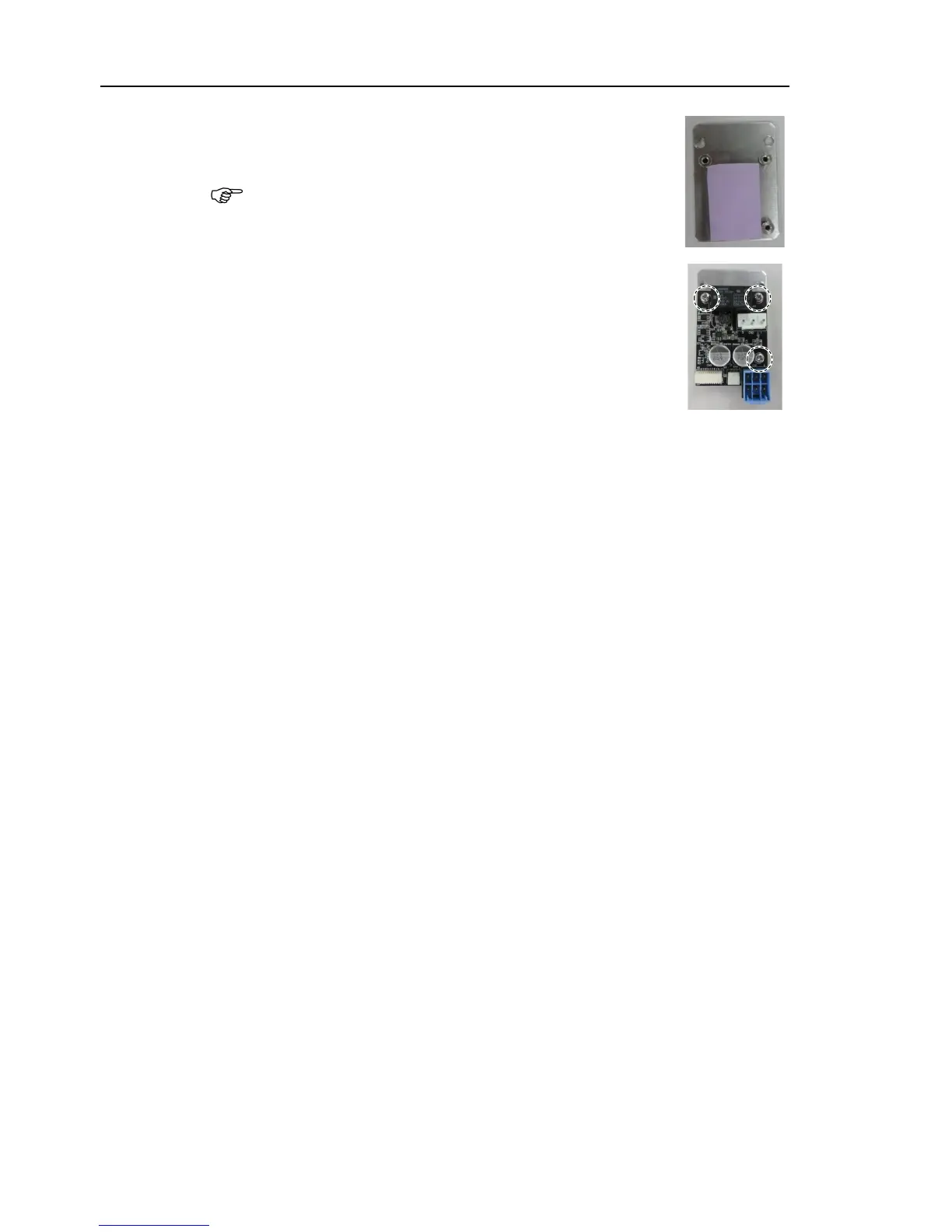

If
the thermal sheet is removed in the Removal step (3), attach
the
sheet on the plate.
Attach
the thermal sheet in the direction that the longer sides of
the
thermal sheet and the plate are parallel. As shown in the
picture,
the attachment position is inside the range surrounded by
three spacers of the AMP board fixing part.
(2)
Mount
the AMP board on the plate.
Cross-recessed screws with a washer: 3-M3×6
Tightening torque: 0.45 ± 0.1 N·m
(3)
Fix
the plate (with AMP board) to the motor unit and mount the motor unit.
Reference: Maintenance 9.1 Joint #1 Motor Installation
Maintenance 10.1 Joint #2 Motor Installation
Maintenance 11.1 Joint #3 Motor Installation

NOTE
