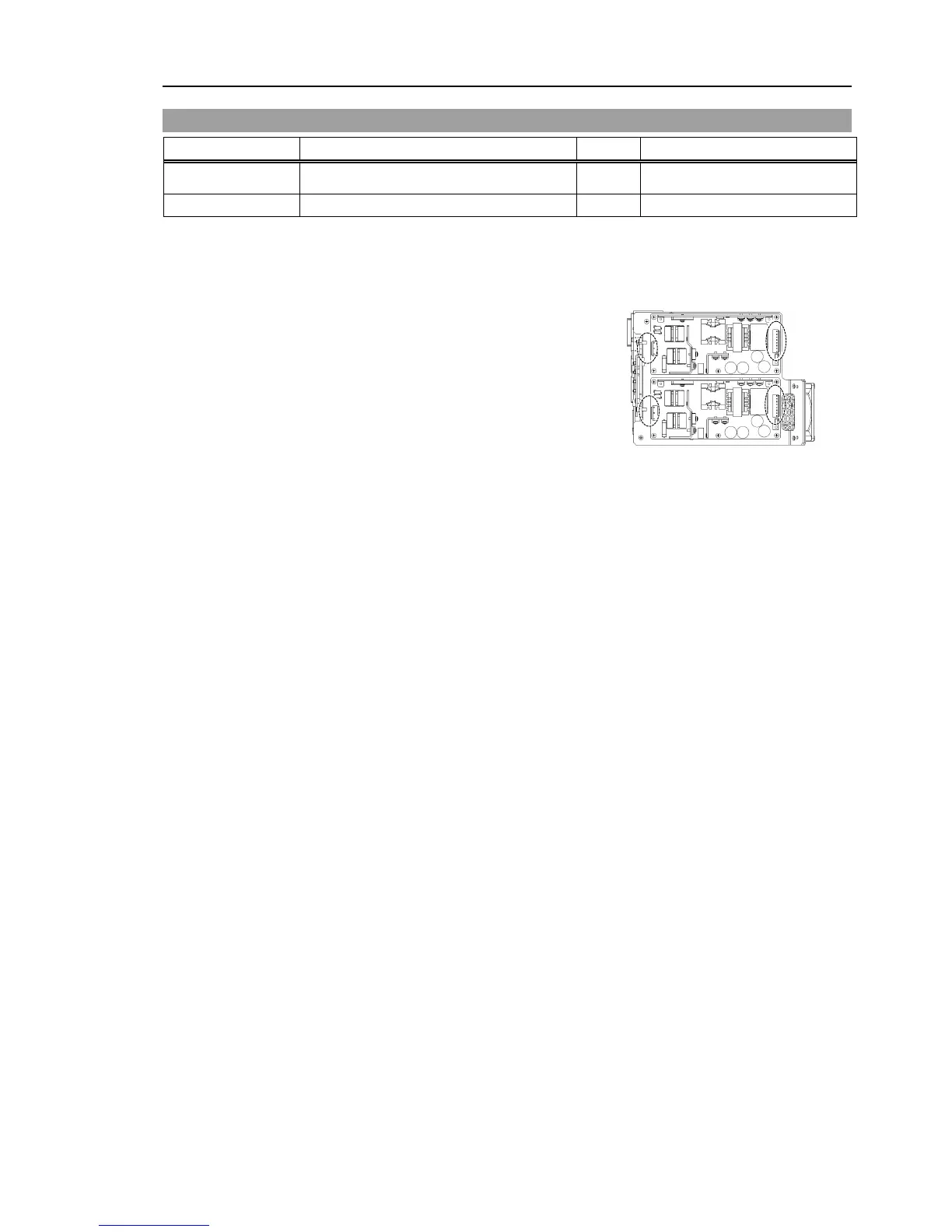

Maintenance 18. Controller Unit
VT Rev.1 235
18.2 Replacing Power Board
Name
Quantity
Note
Maintenance
parts
Power Board 2 2188638
Tools
Cross-point screwdriver (No. 2)
1
P
ower Board
Removal
(
1)
Remove
the controller unit.
Reference: Maintenance 18.1 Replacing Controller Unit
(
2)
Disconnect
the
connectors of the power
board.
Power connectors
(IN/OUT ×2 for each)
OUT
IN
(3)
Remove
the power board.
Pan head screws: 10-M3×8 Sems
P
ower Board
Installation
(
1)
Mount a new power board.
Pan head screws: 10-M3×8 Sems
Tightening torque: 0.45 ± 0.1N·m
(2
)
Connect the connectors of
the power board.
Power connectors (IN/OUT ×2 for each)
(
3)
M
ount the controller unit.
Reference: Maintenance 18.1 Replacing Controller Unit
