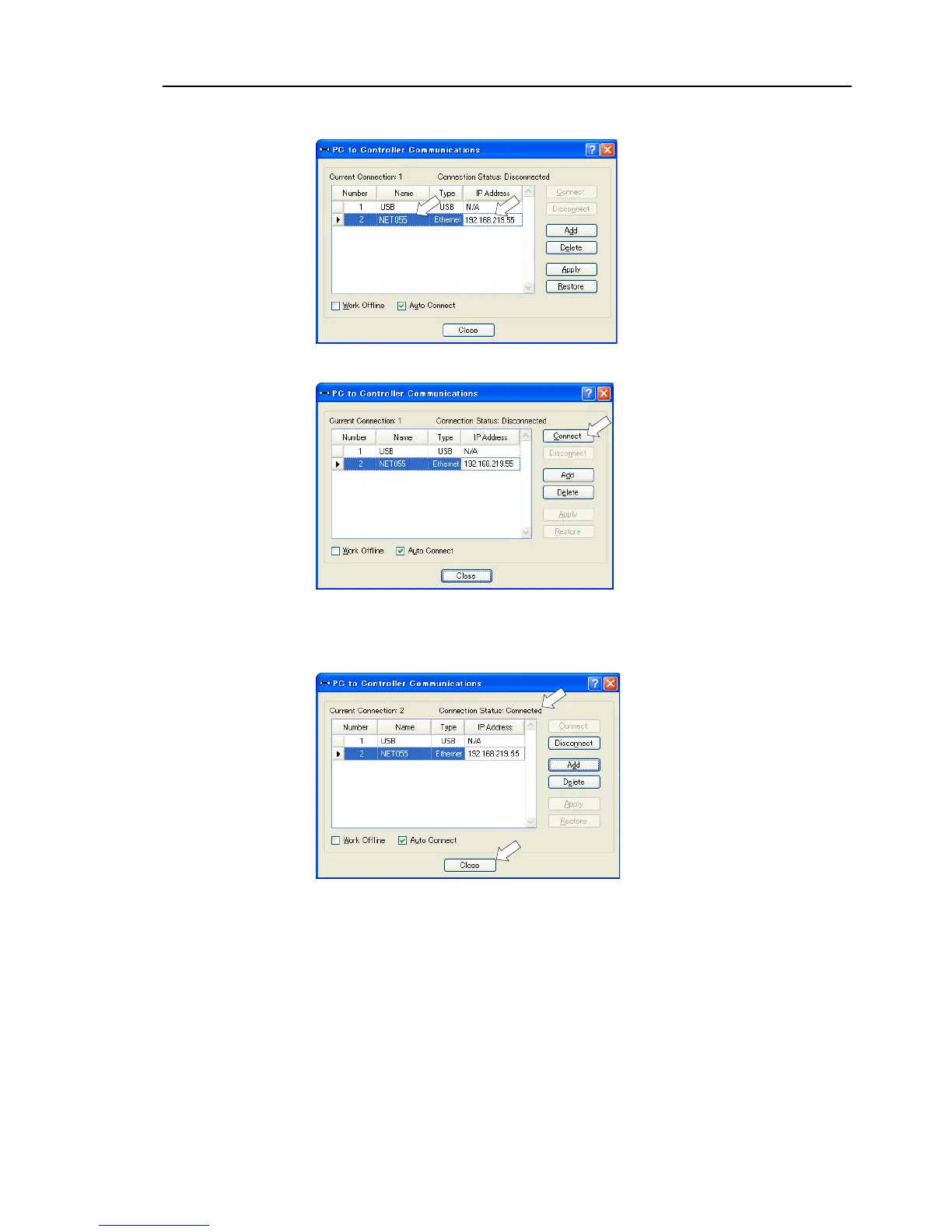

(7) [Name] and [IP Address] specified in procedure (6) is displayed.
(8) Make sure that “No.2” is selected, and click the <Connect> button.
(9) After the development PC and Manipulator connection is completed, “Connected” is
displayed in the [Connection status:]. Make sure that “Connected” is displayed and
click the <Close> button to close the [PC to Controller Communications] dialog.
Connection between the development PC and the Manipulator is complete. Now the
robot system can be used via an Ethernet connection from EPSON RC+ 7.0.
