3 • Description of the Controls
80110-801_V23493
2022-03
Chapter 3
Description of the Controls
Controls on the front panel

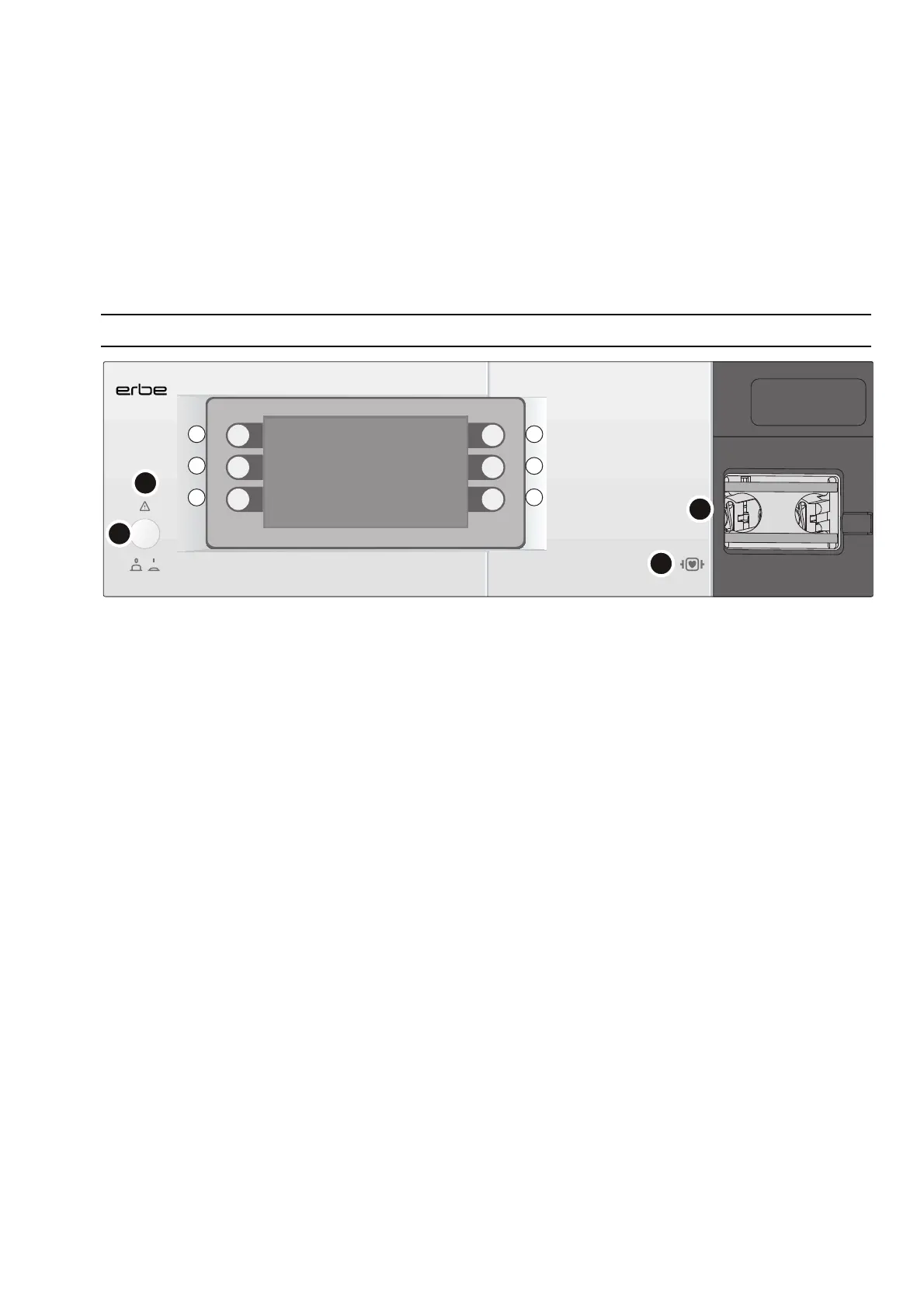

Fig. 3-1
Symbol
(1)
Indicates that the safety instructions in the User Manual must be read before switch-
ing the unit on.
Power
(2) Power switch
Unit on/off. The unit is only fully disconnected from the power supply once the power
cord is pulled out. Install the unit such that the power cord could be easily disconnect
-
ed from the power source.
Symbol
(3) Defibrillation-proof type CF applied part
The applied part conforms to the requirements of type CF (Cardiac Float) and is pro-
tected against the effects of a defibrillator discharge.
Pump shaft
(4)
Accommodates the pump unit (applied part).
Selection buttons
(L1) (L2) (L3) (R1) (R2) (R3)
The buttons have a different function depending on which window is shown on the
display. Take note of the function the button refers to.
1
2
3
4
L1
L2
L3
R1
R2
R3
ERBEJET 2
To Next Page
