ESAB EMS215IC/EMP215IC
6-28 TROUBLESHOOTING Manual 0463 413 001

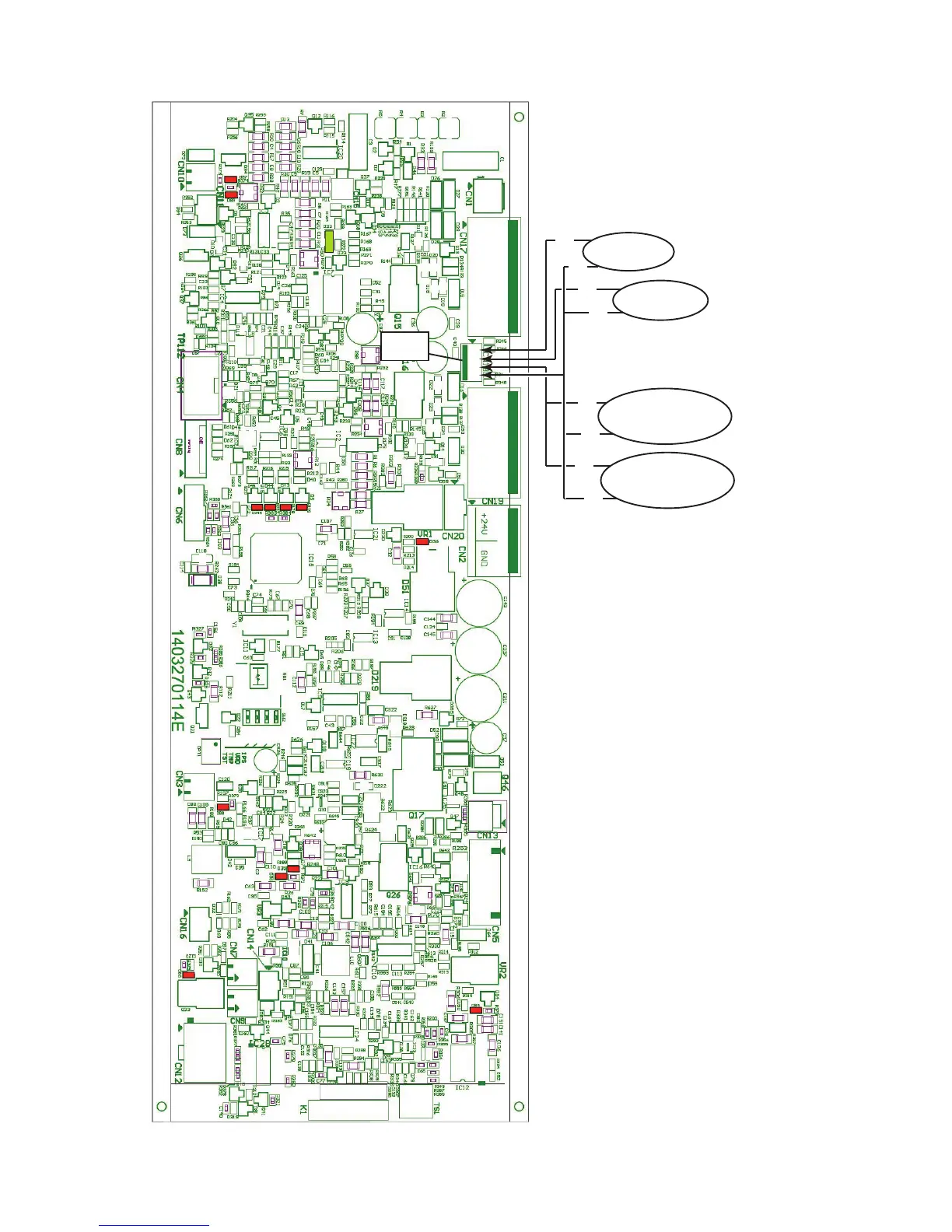

The following image shows the previous steps listed. In the oval you will see the step number and below that
the meter reading you should see.
+
4c 1
0.5VDC / 100A
(with load)
4c 2
0.0 VDC
No load
1
-15 VDC
1
+15 VDC
3
4
1
2
CN18
+
-
-
-
-
+
+
