SECTION 2 PCM-875A Mechanized Plasma Cutting System Description
2-6

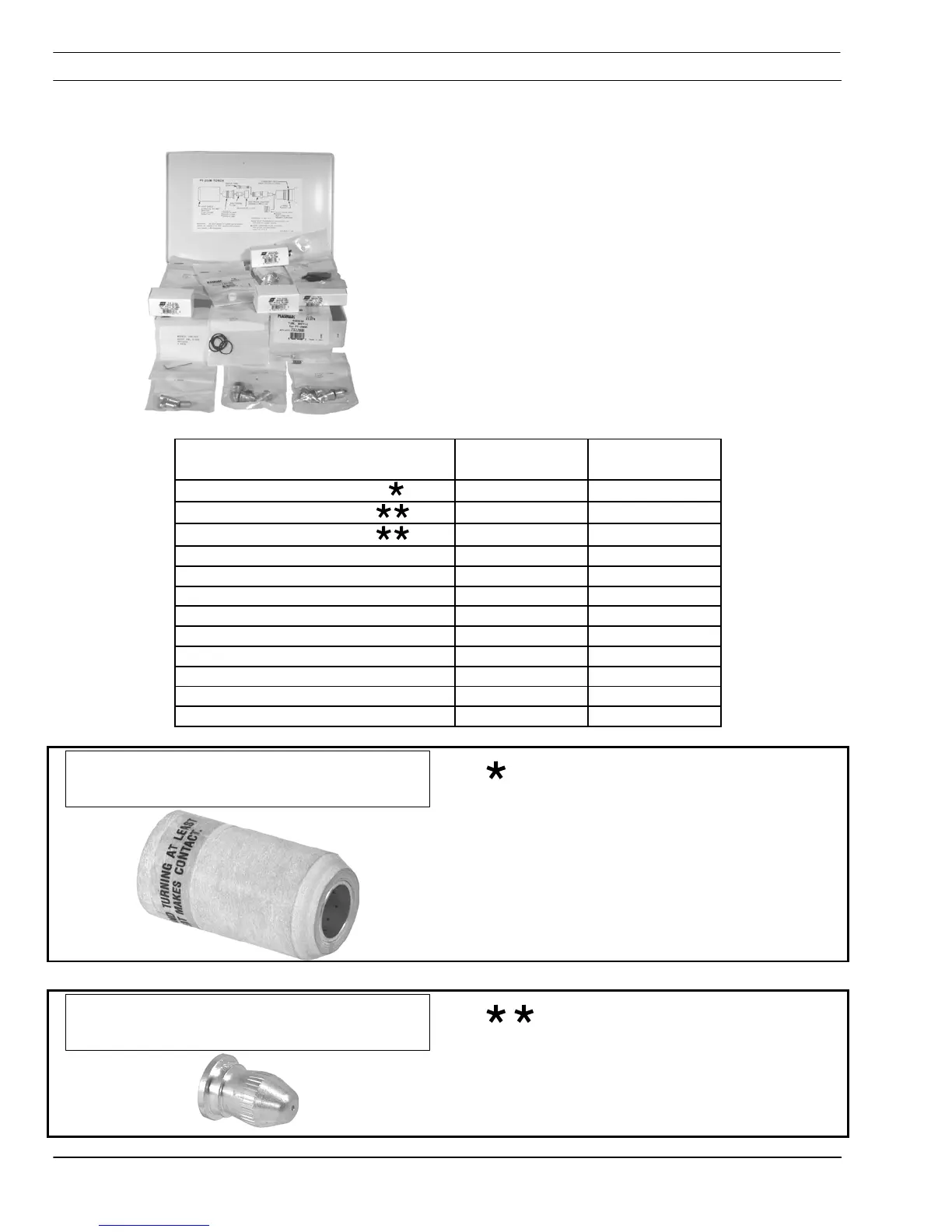

2.4.3 Torch Spare Part Kit
PT-20AMX Torch Spare Parts Kit is available for
maintaining the PT-20AMX torch with minimum
downtime.
P/N 0558002319
Description
P/Number Quantity
Heat Shield (70/100 A)
21326 3
Cutting Nozzle (50 A)
21330 5
Cutting Nozzle (70 A)
23129 5
Electrode 50Hz 0558001617 5
Electrode Insulator 21373 1
Electrode Holder Assembly 21332 1
Baffle Tube 21374 1
Pilot Arc Adaptor 19497 1
O-ring 488157 5
Lubricant (1 oz.) 17672 1
Seat/Baffle Wrench 21375 1
1/16: Hex-Key Wrench 93750006 1
NOTICE
The description of the heat shield (P/N
21326) listed above indicates a range of 70
to 100 amperes. Testing has proven
satisfactory results when used at 60 amps
and lower.
NOTICE
The 50A cutting nozzle can be used at 50
amperes and lower.
The 70A cutting nozzle can be used at 50
to 70 cutting amperes.
