SECTION 3 PCM-875A Mechanized Plasma Cutting System Installation
3-12

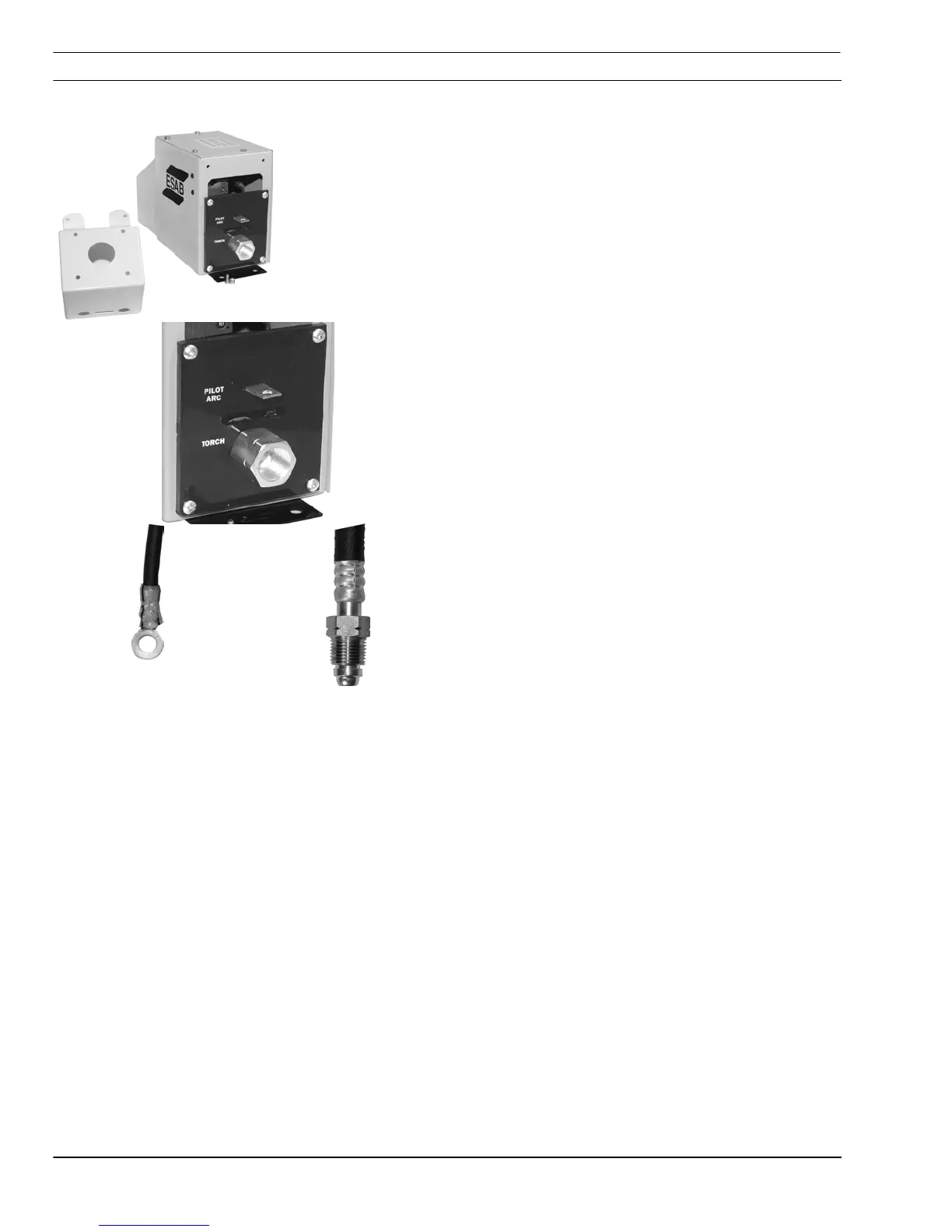

3.3.4 RAS2 Output Connections to Torch
· Pilot Arc – Connect pilot arc cable in torch
bundle to pilot arc output lug using #10 screw,
lock washers and nut.
· Torch – left hand threads connect the torch
gas (air) and plasma arc current. (Cable inside gas
hose conducts the plasma cutting current)
Torch Lead Pilot Arc
Connector
Torch Lead
Voltage/Gas Hose
