SECTION 3 PCM-875A Mechanized Plasma Cutting System Installation
3-13

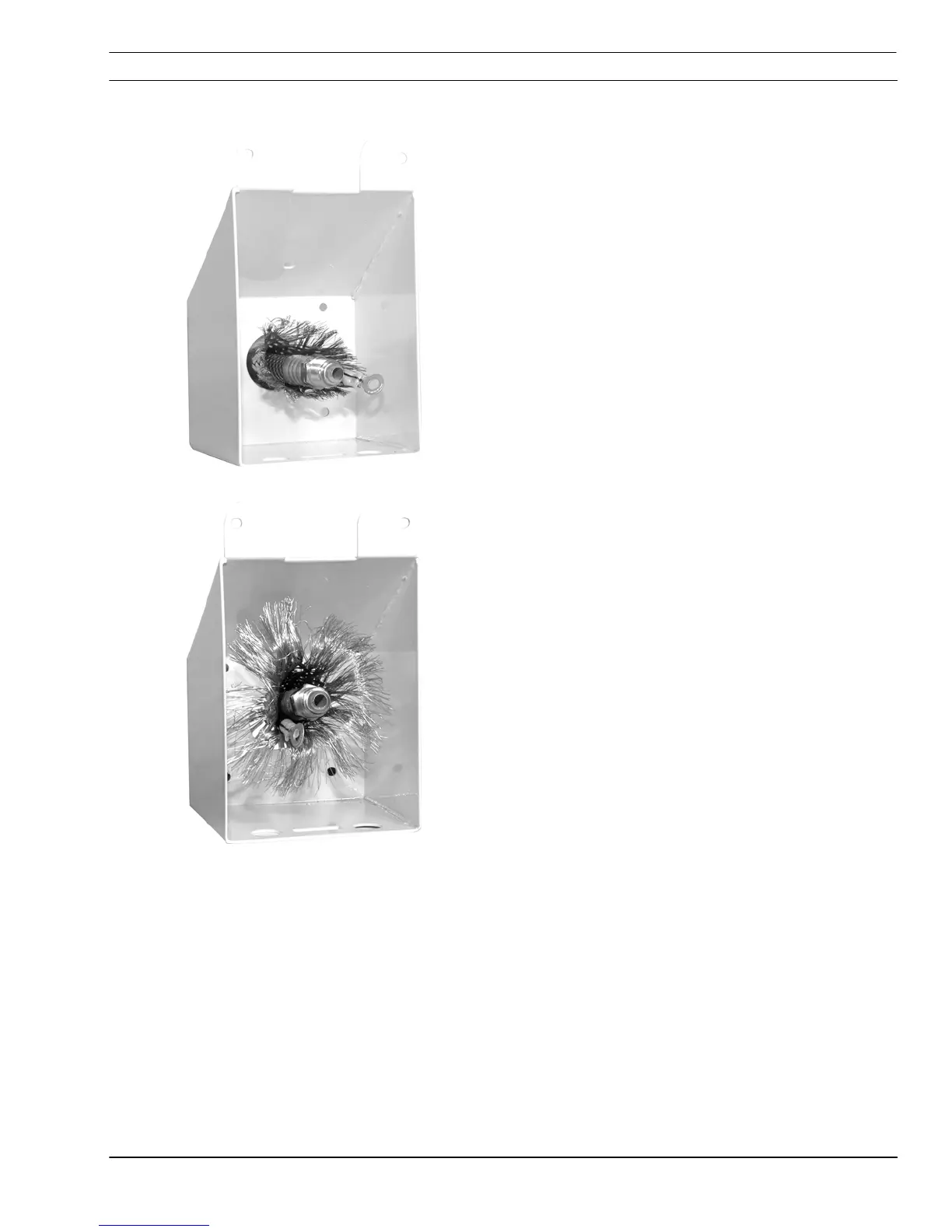

3.3.5 Terminating Shield Braid at RAS2
1. Insert Braid and hose bundle through RAS
cover hole.
Insert bundle
2. Flare braid by bending it back at 90 degrees
about 25 mm from the end.
Flair Braid
