SECTION 3 PCM-875A Mechanized Plasma Cutting System Installation
3-14

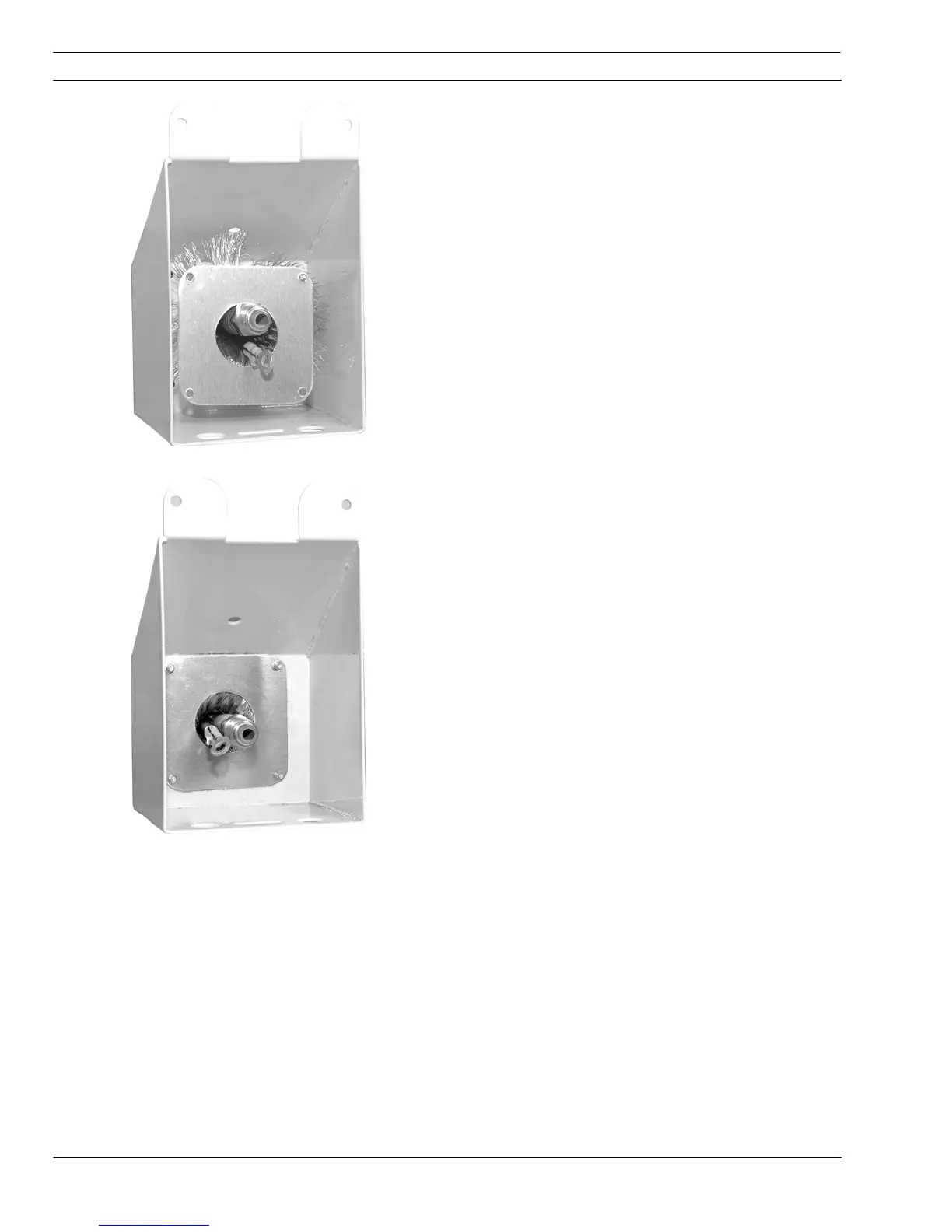

3. Insert ground plate over torch leads.
Insert Ground Plate
4. Fasten ground plate with 4 screws inserted
from the outside. Trim braid strands if desired.
Fasten Ground Plate
