ESAB PCM-875A - Secondary (Output) Connection

SECTION 3 PCM-875A Mechanized Plasma Cutting System Installation
3-5
3.2.6 Secondary (Output) Connections to Power Console
WARNING
!
Electric Shock Can Kill!
Ensure all power is off by opening the line
(wall) disconnect switch and power cord is
disconnected before attempting to make
any connections inside the power console.

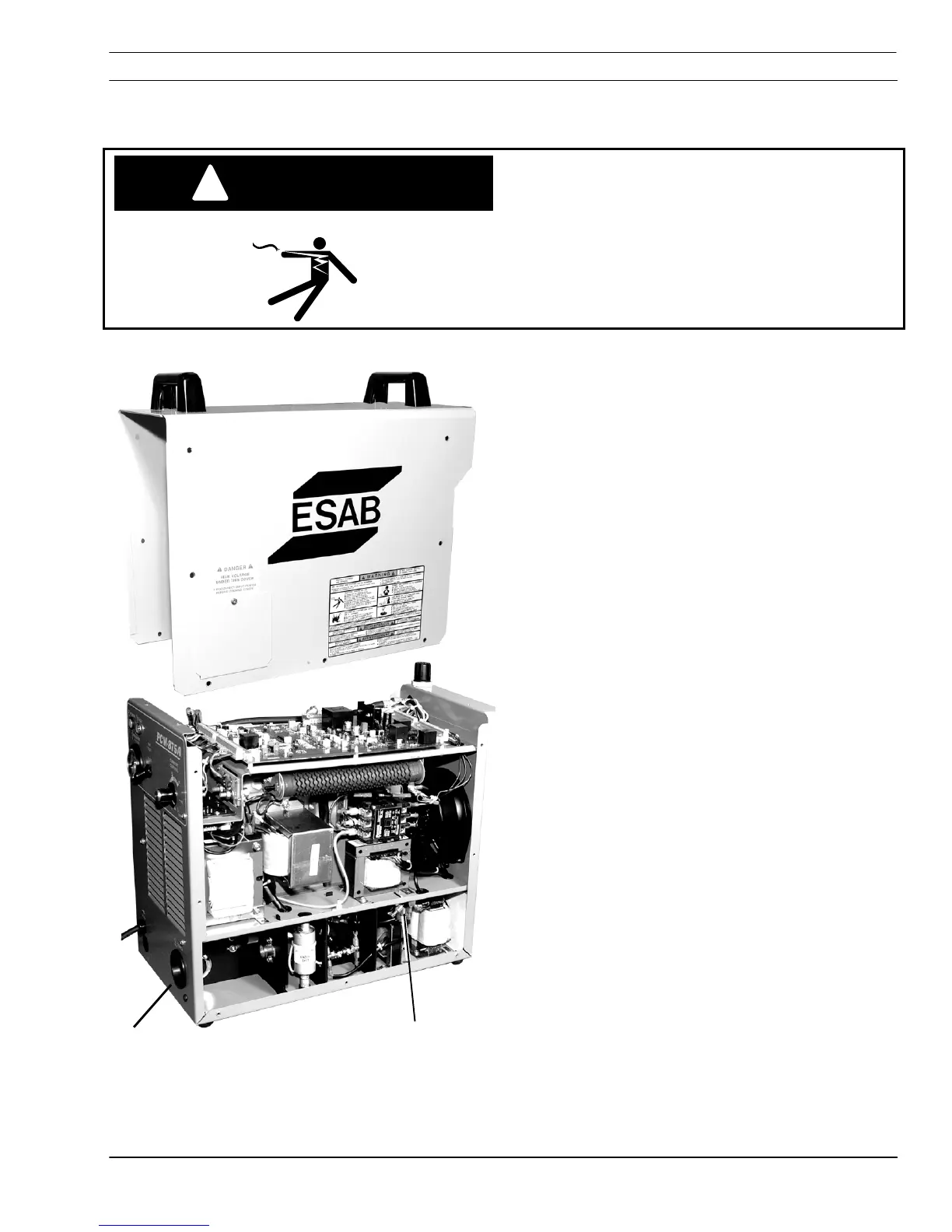

Remove outside cover
Insert power cable, pilot arc, and air hose through
power cable bushing.
Power Cable Bushing TB1
