SECTION 3 PCM-875A Mechanized Plasma Cutting System Installation
3-6

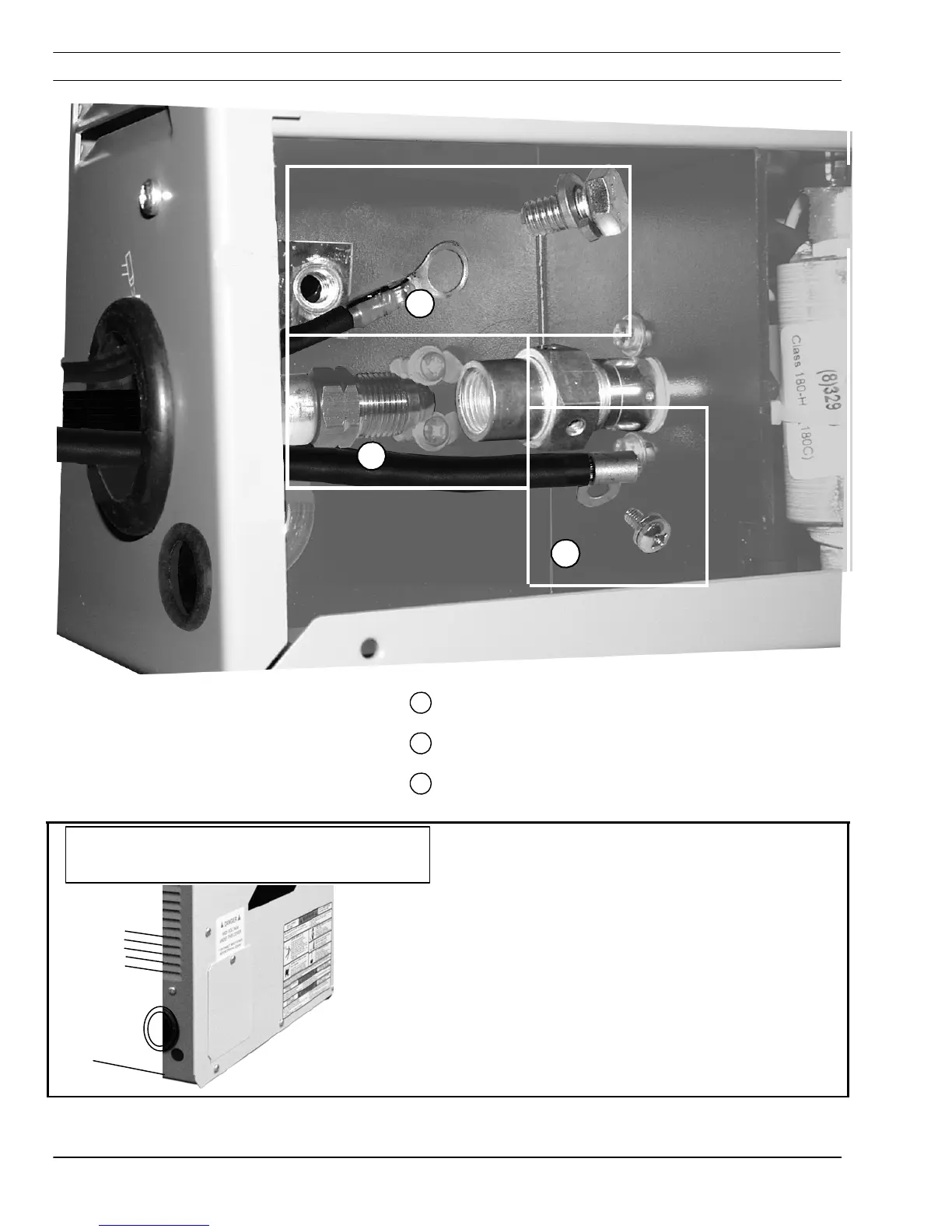

1
Pilot Arc
2
Cut Gas
3
Arc Current
1
Bolt pilot arc cable ring connection to the copper
terminal.
2
Connect air hose to air/power connector (left hand
threads).
3
Connect power cable to air/power connector using
#10 screw
NOTICE
The console cover does not have to be removed to
make the three connections above. Remove
access panel if replacing cables or checking
connections.
To Next Page
