SECTION 3 PCM-875A Mechanized Plasma Cutting System Installation
3-7
TB1
Insert115VAC Pilot Arc Cable

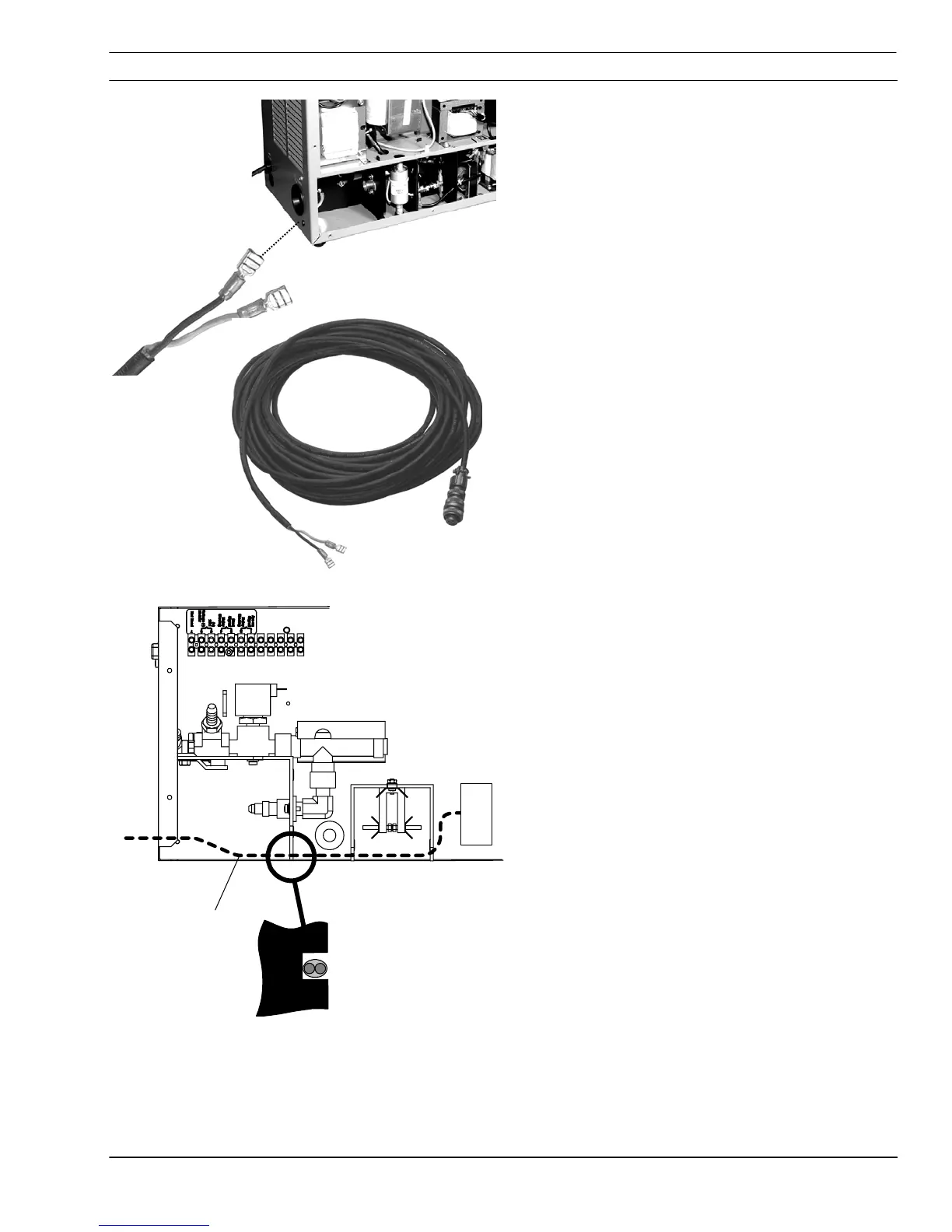

Insert 115VAC RAS cable through strain relief
located in the lower right corner of the front panel.
115VAC RAS Cable
Rout 115VAC RAS cable along inside edge in
notches in insulating material to TB1.
2 conductor
115VAC cable
routed through
notch
