SECTION 3 PCM-875A Mechanized Plasma Cutting System Installation
3-8

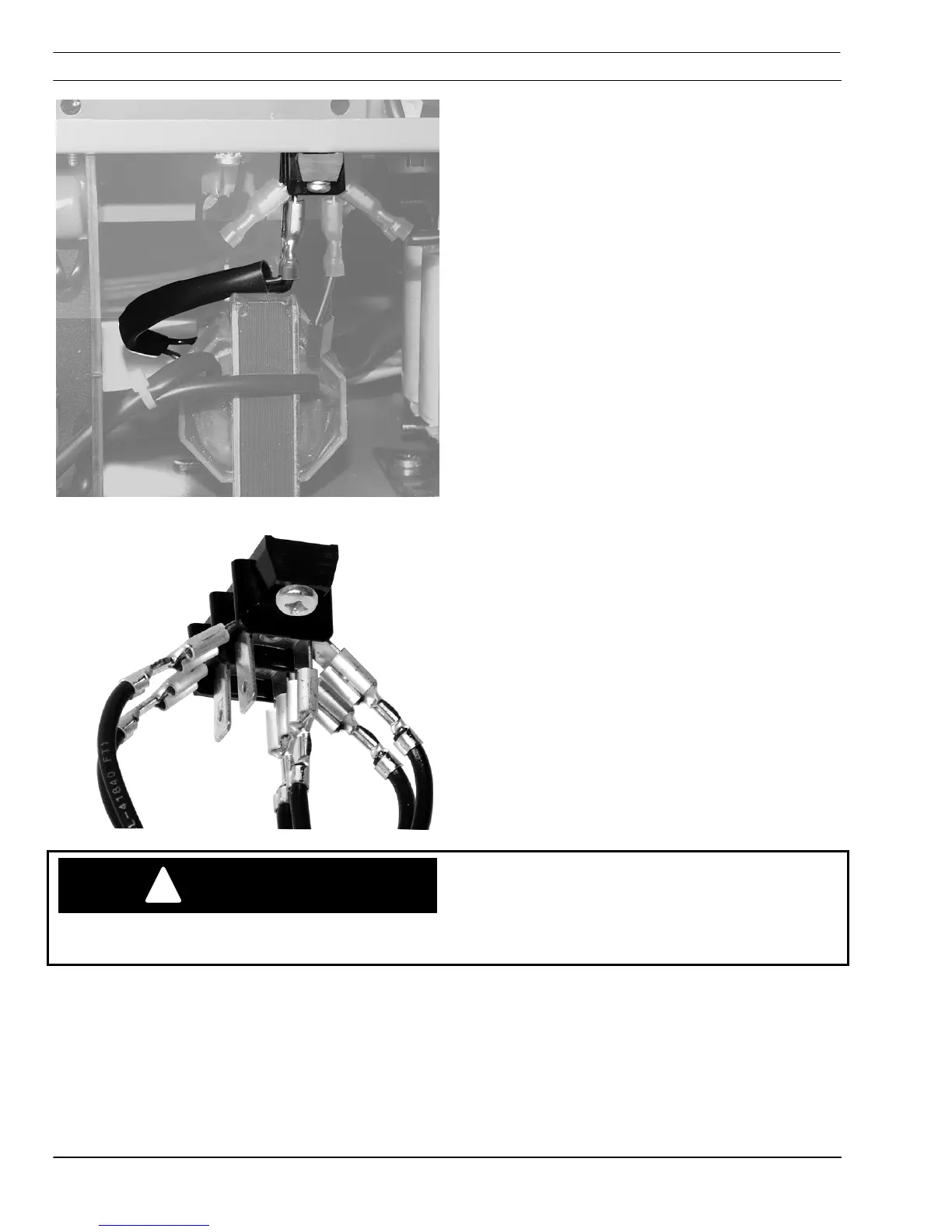

Remove connection for internal arc start from TB1
TB1
Plug terminal connectors into 2 available lugs on
TB1.
CAUTION
!
Cable Terminals to TB1 should be
insulated to prevent possible damage due
to internal arcing in the power console.
The above illustration shows the terminals
un-insulated for clarity of wire positions.
Replace cover if next step is not required.
To Next Page
