SECTION 3 PCM-875A Mechanized Plasma Cutting System Installation
3-9
3.3 Connecting the Remote Arc Starter

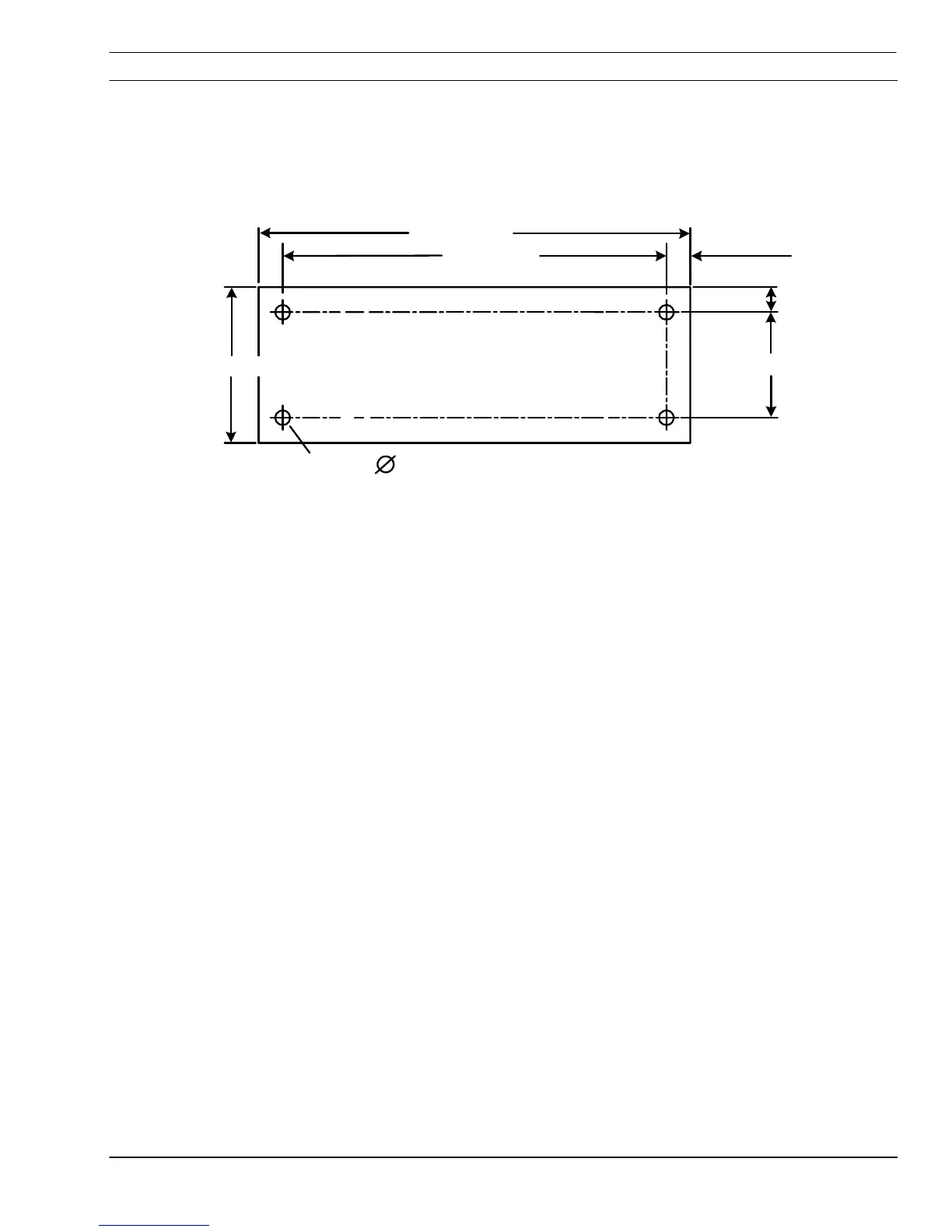

3.3.1 Mounting RAS2
Mounting location of RAS unit is restricted by the
length of torch leads, 1,2 m -- 5,4 m or 7,6 m.
13,5mm
203,2mm
55,9mm
12,7mm
228,6mm
82,6mm
8mm
