FIREBALL INSTALLATION & USER’S GUIDE - M22001-01A1
CHAPTER 2 - SETTING UP FIREBALL
FireBall E Back Panel Reviewed

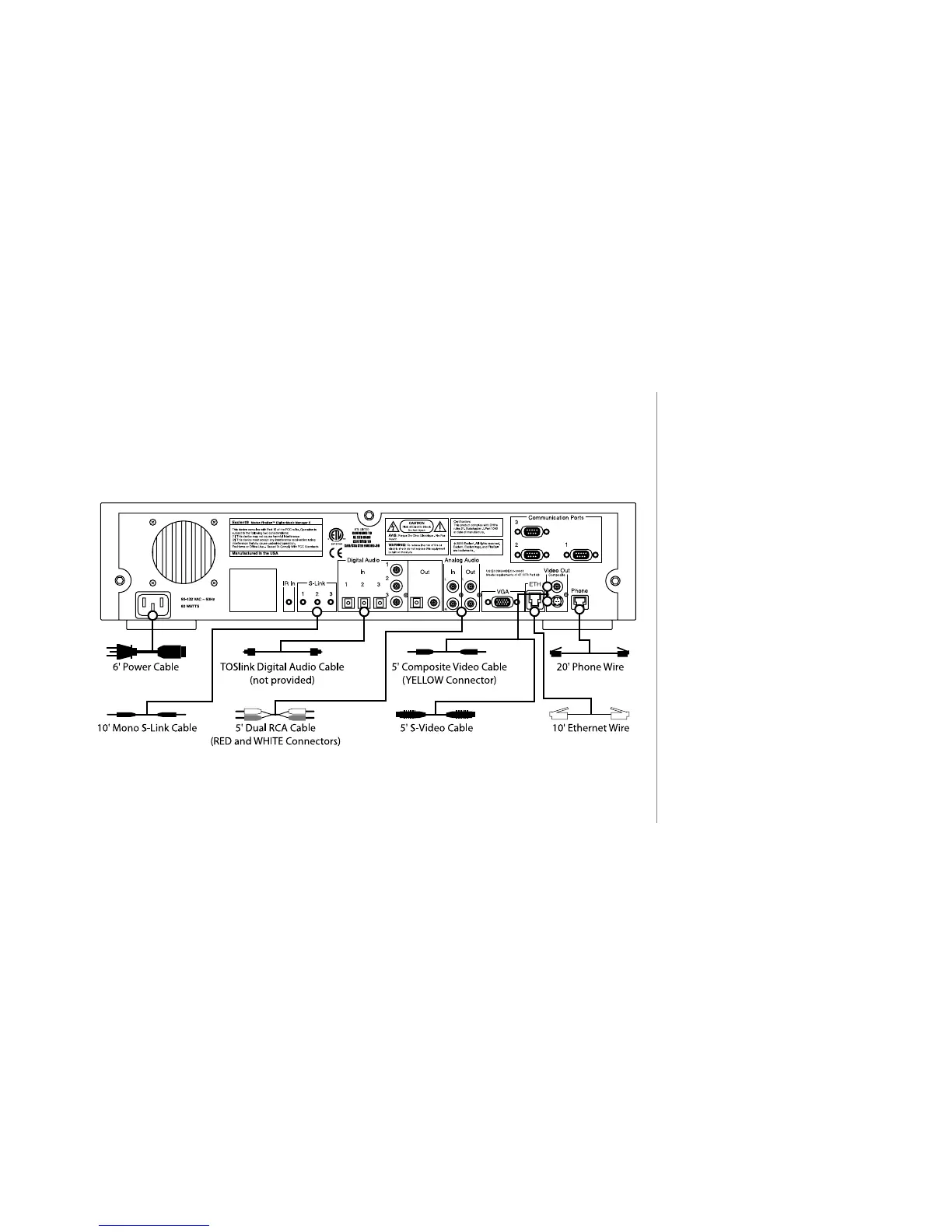

Review the back panel of the FireBall E unit and the associated cabling.
2
Please note that audio and video
ports on the back panel of the
actual FireBall unit are labeled and
color-coded.
