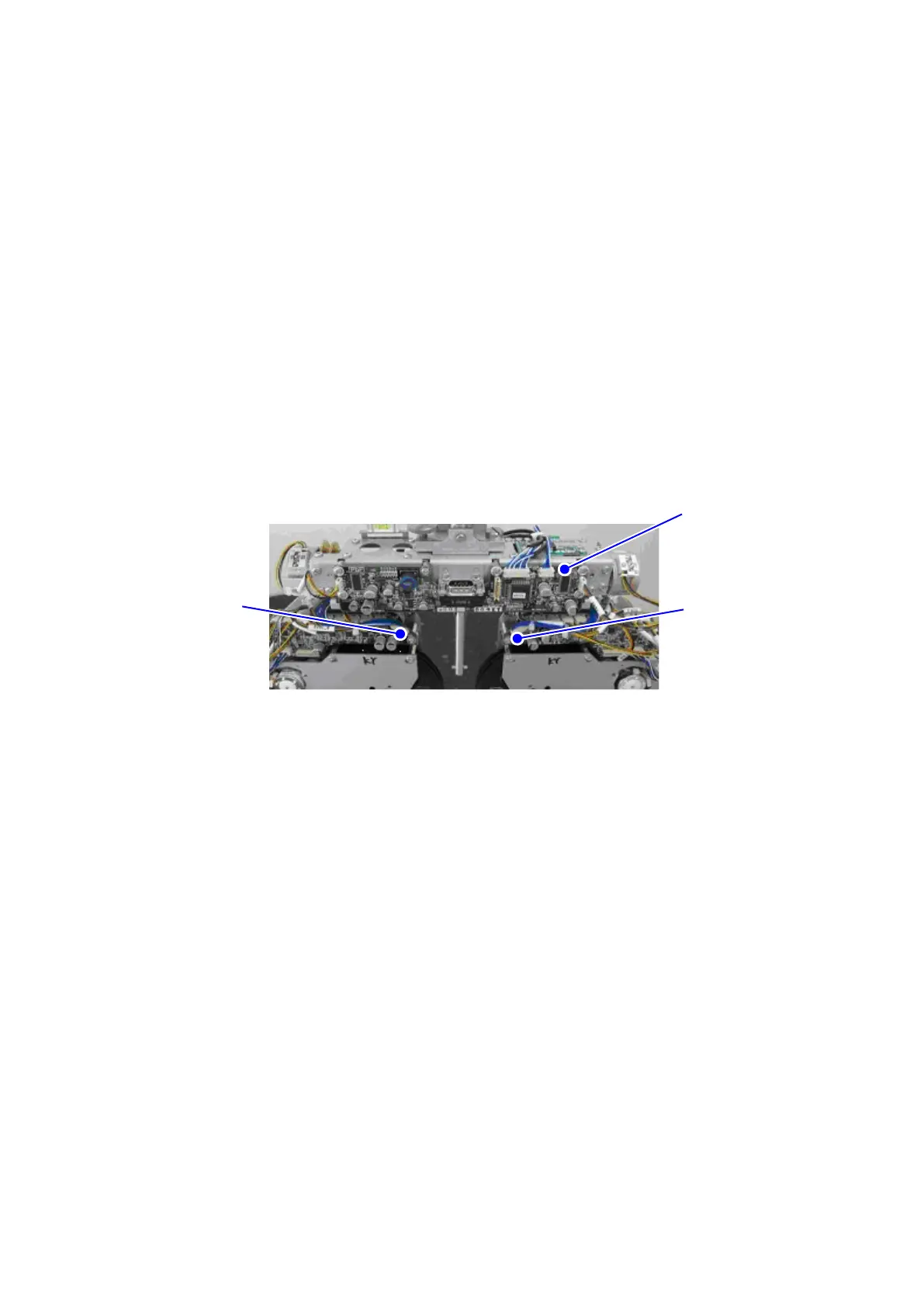

8-1-6 Replacement of PD assy
1) Load the calibration value to the PC, change it to the data of the parts for repairs and
save it (refer to 7-2-1).
2) Remove the LD case assy, the PD case F and PD case B (refer to 8.1.1).
3) Remove the LD-R assy, LD-L assy and the motor drive unit harness (refer to 8.1.5).
4) Replace the PD assy after removing it from the measuring table etc.
5) Input the data changed on 1) (refer to 7.2.1). 5)
6) The procedure of the replacement is finished.
Reassemble it with the opposite procedures of the disassembling.
