4) The procedure of disassembling is finished.
Reassemble it with the opposite procedures of disassembling.

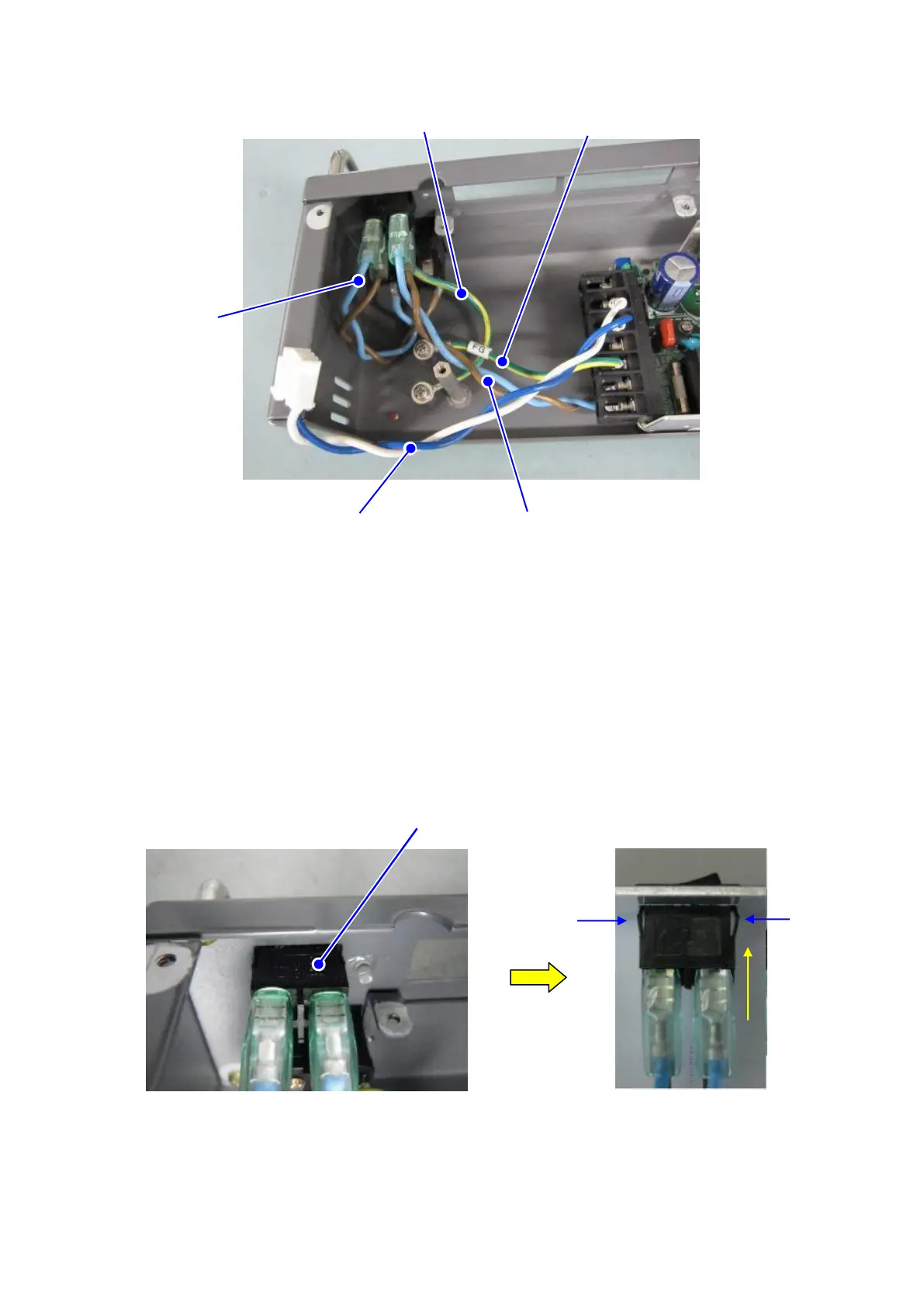

8-3-2 Replacement of power supply switch
1) Remove the power supply case and the communication board assy (refer to 8-3-1).
2) Remove all of the harnesses connected to the power supply switch.
3) Pinch A parts with a nipper etc. and press it out to B direction.
4) Place the new power supply switch in the main unit with the appropriate direction and
put the harnesses on as they were.
Inlet earth harness
Power supply
SW harness
Earth harness 2
SWPS input harness
SWPS output harness
A
A
B
Details for
removal
Power supply switch
