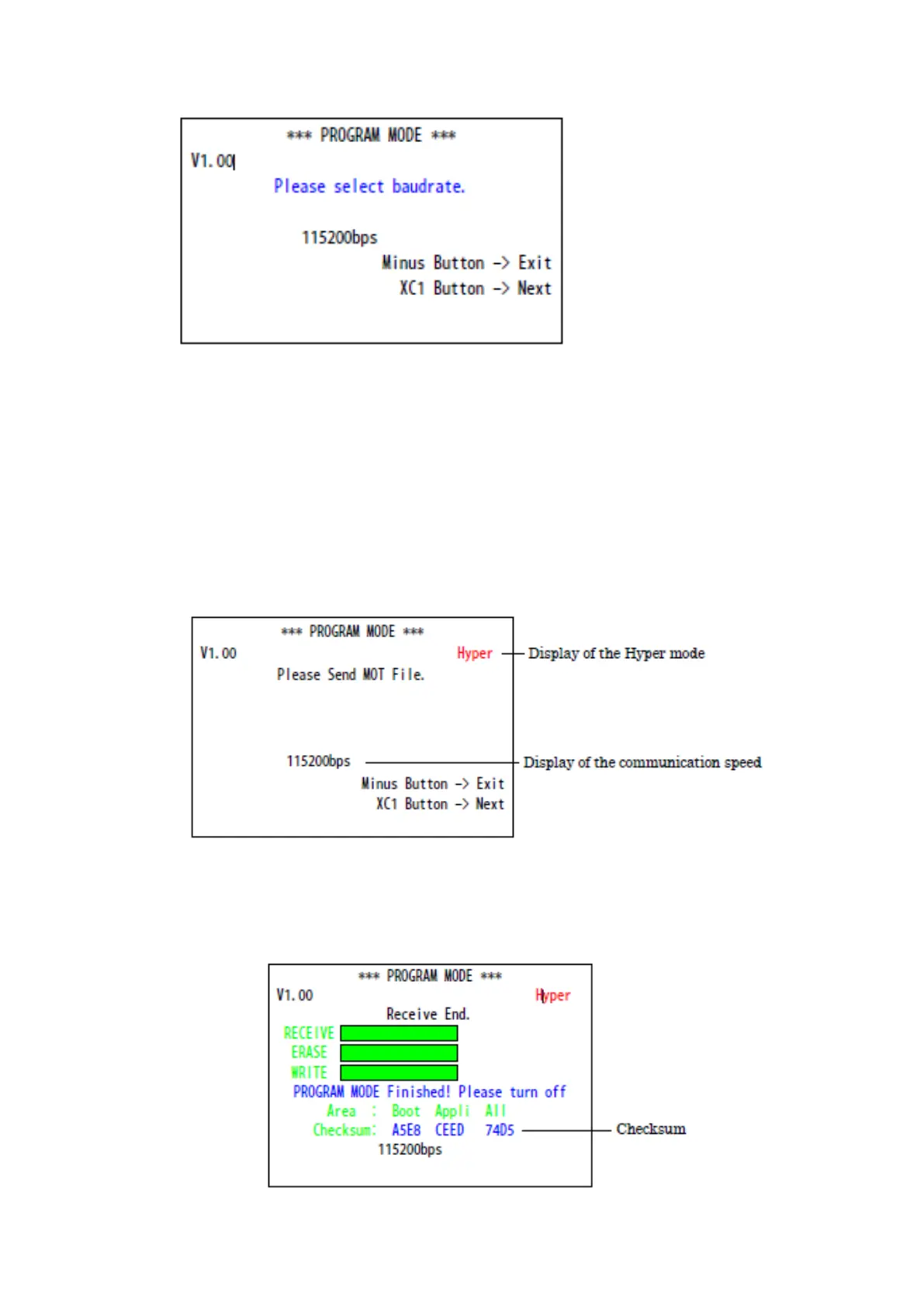

It has been started up properly if the screen as shown below is displayed.
(6) Communication setting of APH550.
① The setting of the communication speed
It is set as 115200bps by pressing the top button and set as 9600bps by pressing the
bottom button. (Set the communication speed same with PC.)
② The setting of the Hyper mode
Enter the Hyper mode by pressing the right button. It is cancelled by pressing the left
button.
③Press the XC1 button after setting the communication.
“Please Send MOT File.” is displayed by pressing the XC1 button.
(7) Communication execution
Start the communication by pressing the “Send” button of the application. The
progressing bars of both the application and APH550 are displayed. Turn the power off
after 3 bars of APH550 become 100% and the “Checksum” is displayed.
To Next Page
