8-3 Relay box

8-3-1 Replacement of communication board assy, switching power

supply assy, power supply BKT, power supply case and harness

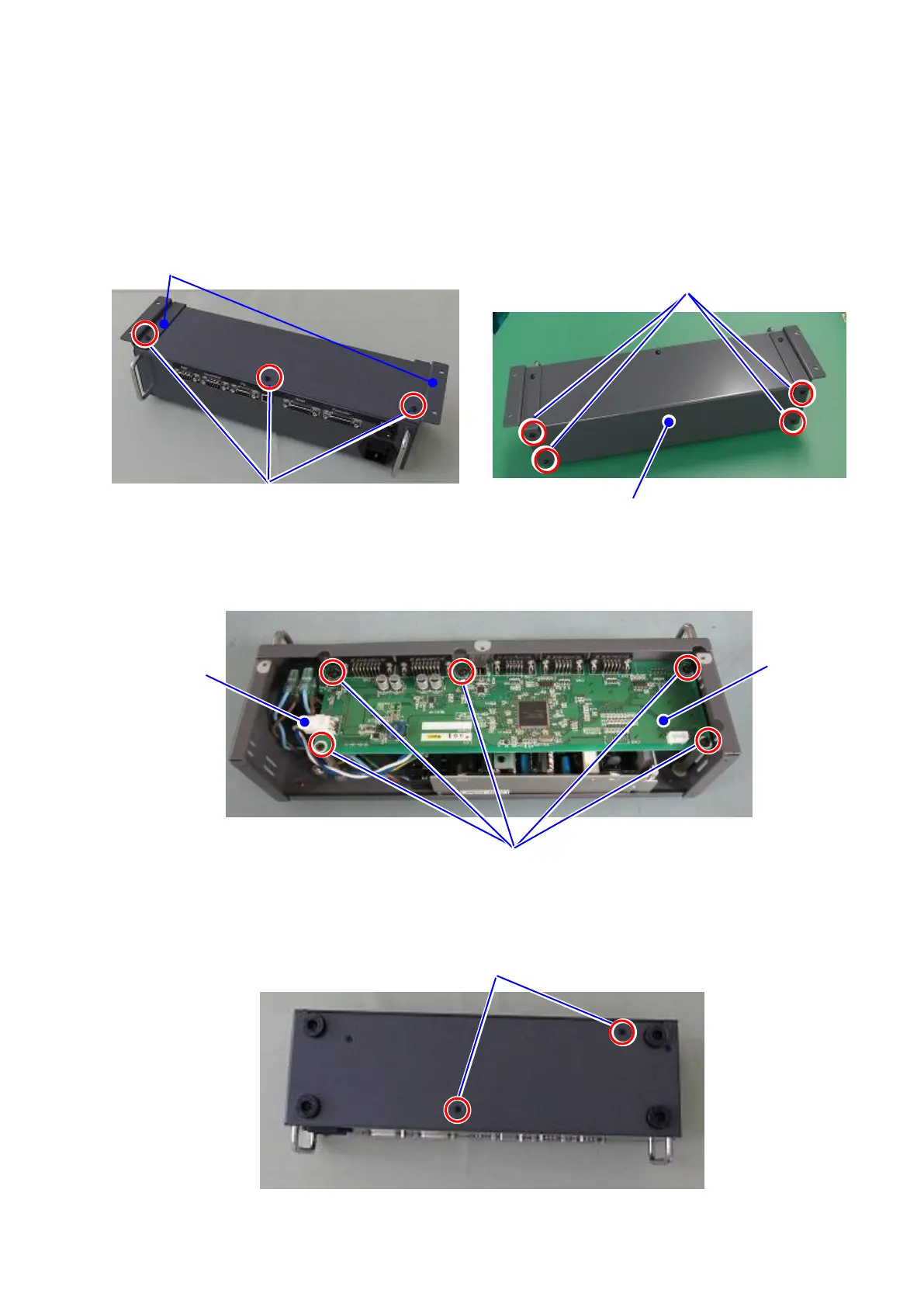

1) Remove the power supply case after removing 7 case fixing screws.

2) Replace the communication board assy after unscrewing 5 board fixing screws and

removing all of the harnesses connected to the communication board assy.

3) Replace the switching power supply assy and the harness after unscrewing 2 fixing

screws and all of the harnesses connected to the switching power supply assy.

Fixing screws

Communication

board assy

Fixing screws

Harness

Fixing screws

Power supply case

Power supply BKT
