VALVOLA INIEZIONE 3/8” – ½” / 3/8” – ½” INJECTION VALVE / SOUPAPE D’INJECTION
3/8” – ½”

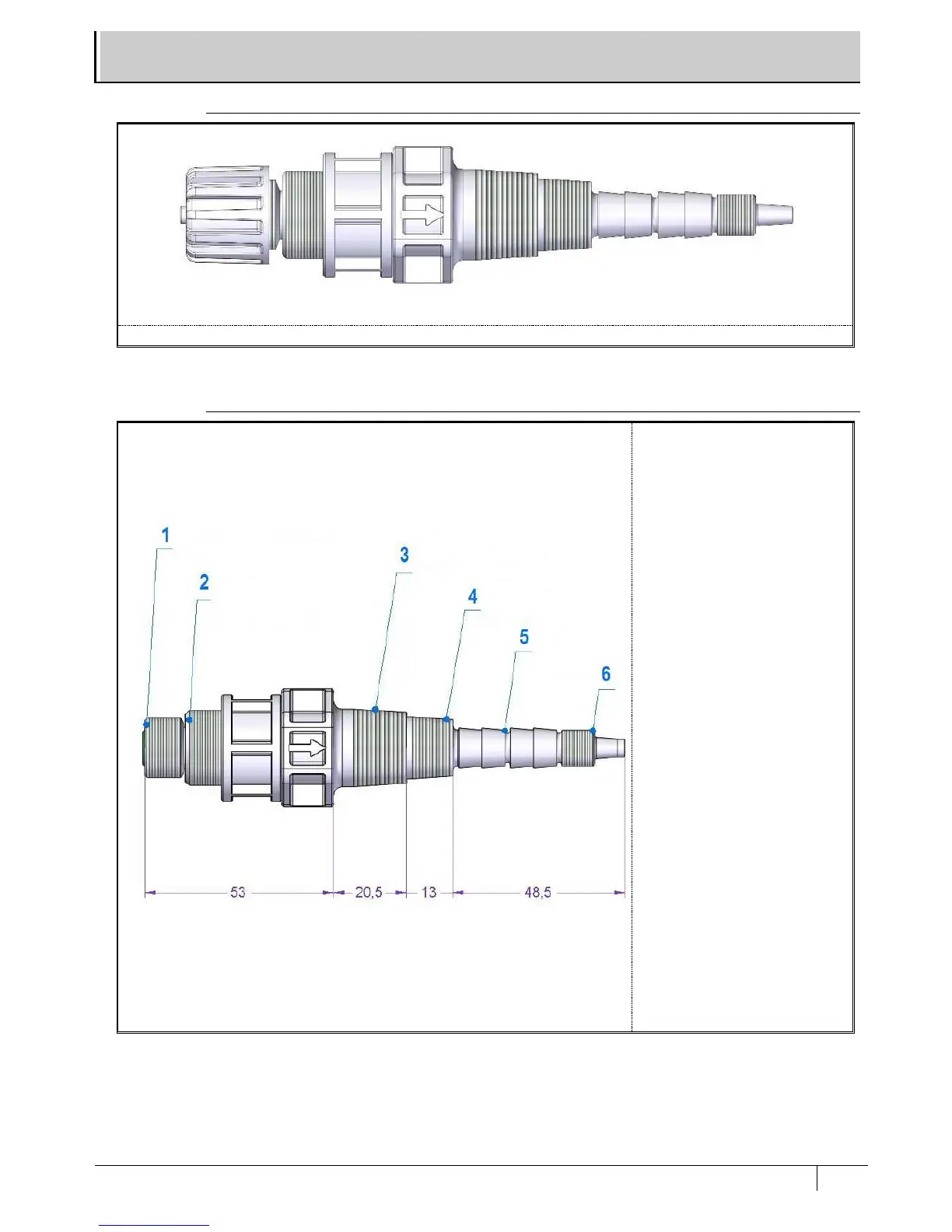

Vista complessiva / Comprehensive view and features / Vue d’ensemble
CONFIGURAZIONE STANDARD / STANDARD CONFIGURATION / CONFIGURATION STANDARD
Dimensioni e caratteristiche / Overall dimensions and characteristics / Dimensions
et caractéristiques
1 attacco pompa 3/8” -
3/8” pump
connection -
raccordement de la
pompe 3/8”
2 attacco pompa ½” -
½” pump connection
- raccordement de la
pompe ½”
3 attacco su impianto
½”gc – ½” pipeline
connection -
raccordement de
canalisation ½”
4 attacco su impianto
3/8”gc - 3/8”
pipeline connection -
raccordement de
canalisation 3/8”
5 prolunga ad intagli -
pre-cut extension -
l'extension pré-
coupés
6 attacco M10x1 -
M10x1 threated
connection -
connexion filetée
M10x1
