Relay services output
In each submenu, you may enable or disable the intervention of a release associated to one or more of
the following alarms:
• Level alarm
• Flow switch alarm
• Meter impulse alarm that intervenes in the 1xN (M) function (only proportional versions)
• Meter impulse alarm in PPM (only proportional versions)
• Meter impulse alarm in ml x m3 (only proportional versions)
• Maximum value alarm (only control versions)
• Minimum value alarm (only control versions)
• Overdose alarm (only control versions)
• UNDERLOAD alarm
• OVERLOAD alarm
By default, the alarms mentioned above are all disabled , except for the LEVEL ALARM (default
ENABLED)

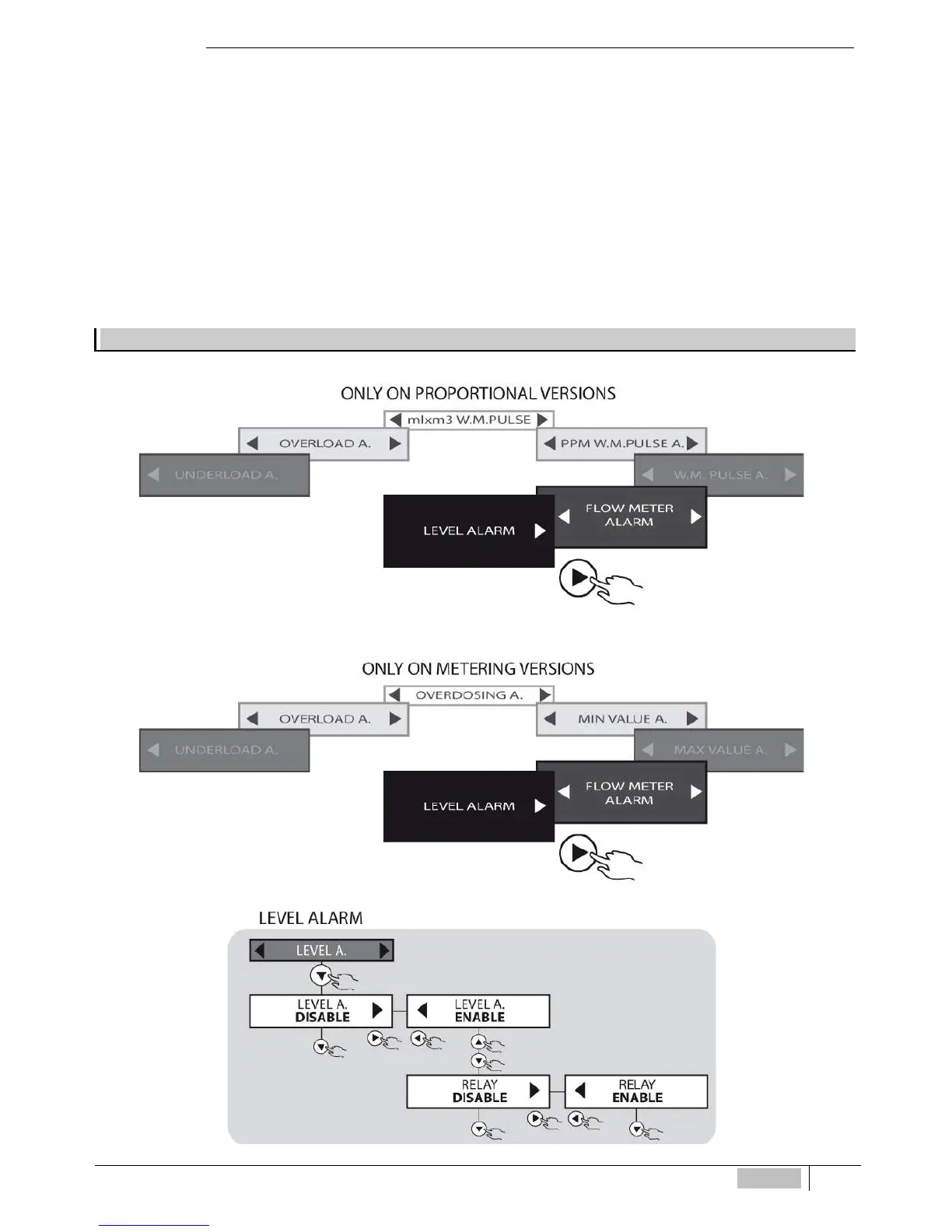

FLOW DIAGRAM ALARM MENU
