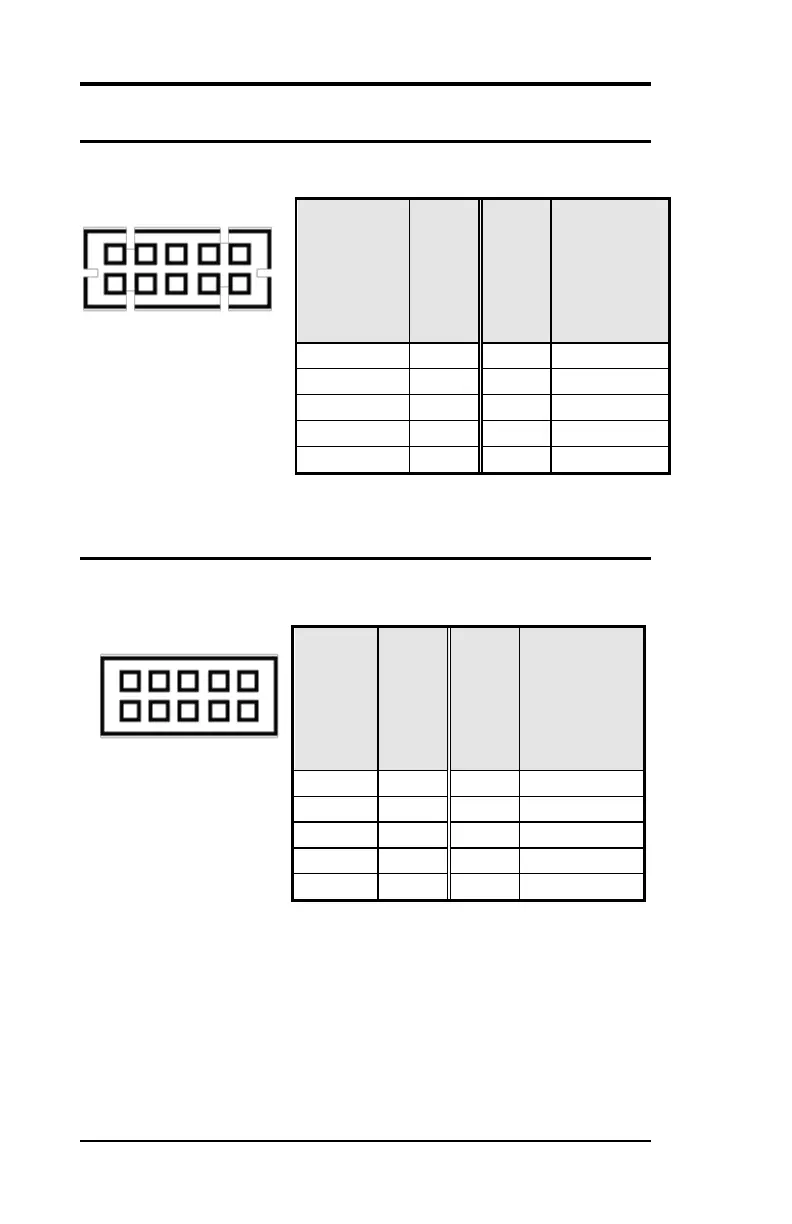

USB12, 34, 56 Connectors
The following table shows the pin outs of the USB12, USB34, USB56
connectors.
Signal
Name
Pin #
Pin #
Signal
Name
N.C.
1
2
VCC
GND
3
4
USB-
USB+
5
6
USB+
USB-
7
8
GND
VCC
9
10
N.C.
INT_VGA Connector
NT_VGA is for internal Video A/D board connection. The pin out is
listed as below:
Signal
Name
Pin #
Pin #
Signal
Name
RED
1
2
GND
GREEN
3
4
GND
BLUE
5
6
GND
HSYNC
7
8
DDC_DATA
VSYNC
9
10
DDC_CLK
