ETOP PISA-E11 - BACK LITE Connector; System FAN Connector; CPU FAN Connector

PISA-E11 User`s Manual 23

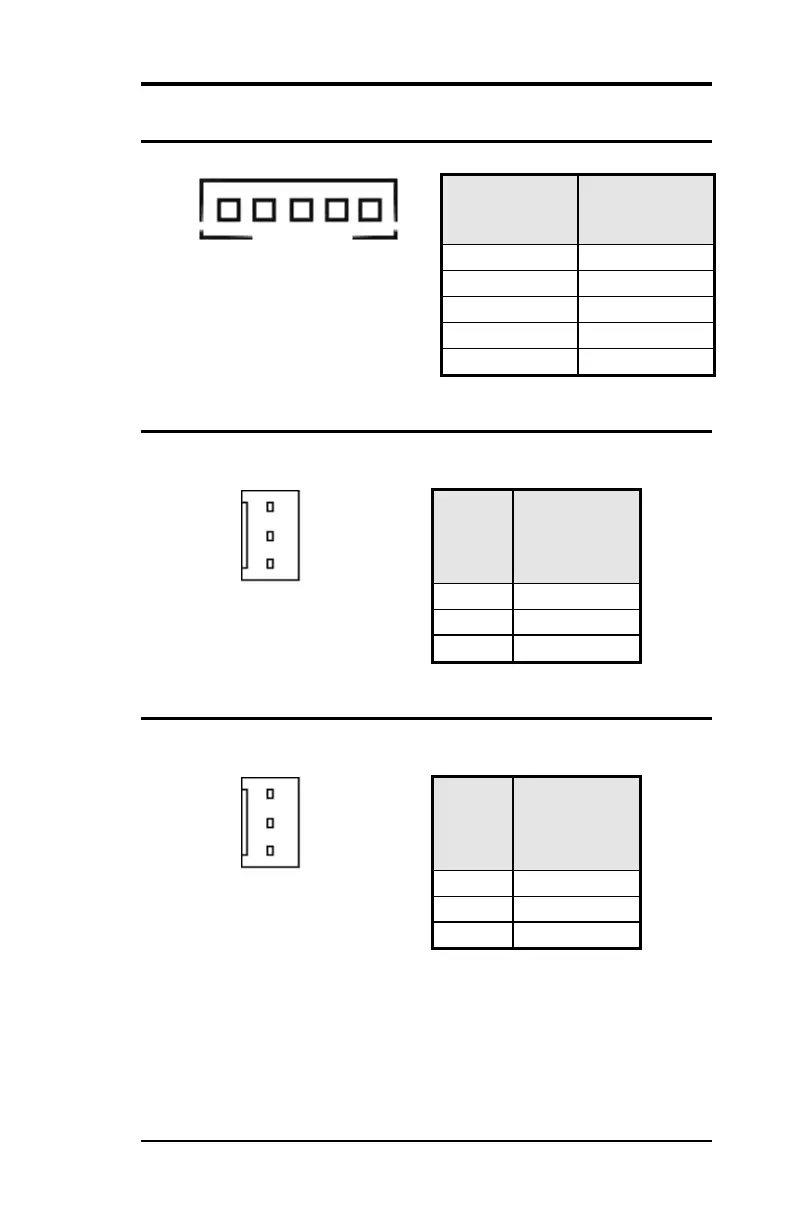

BACK LITE Connector
Pin #
Signal Name
1
+12V
2
GND
3
Brightness
4
ON/OFF
5
GND
System FAN Connector
This is a 3-pin header for the system fan.
Pin #
Signal Name
1
Ground
2
+12V
3
SYSPWM
CPU FAN Connector
This is a 3-pin header for the CPU fan.
Pin #
Signal Name
1
Ground
2
+12V
3
CPUPWM
