24 PISA-E11 User`s Manual

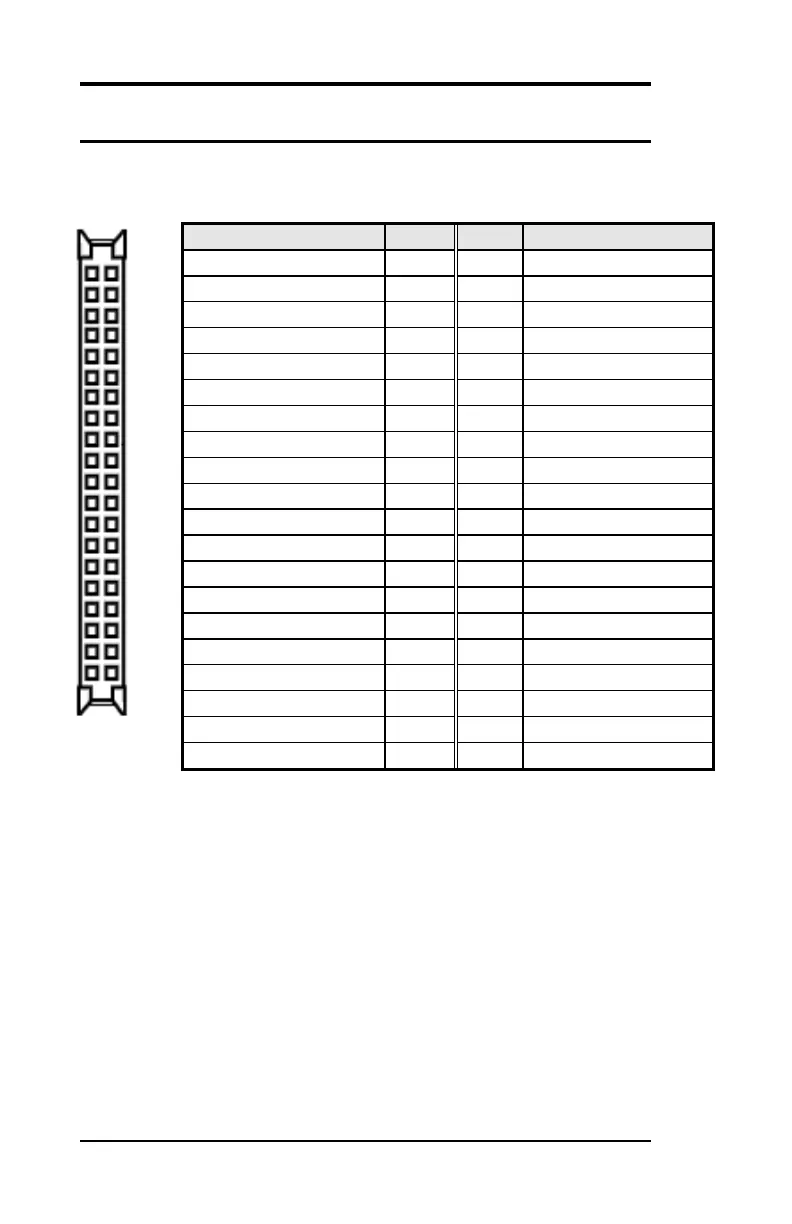

LVDS LCD Connector
The LCD panel, inverter for LCD LAMP, Touch-screen Serial Interface
must be connected to this LVDS header, using the below described
connector:
Signal Name
Pin #
Pin #
Signal Name
+12V
2
1
+12V
GND
4
3
GND
LCDVDD 5V/3.3V
6
5
LCDVDD 5V/3.3V
GND
8
7
GND
BCKLITE_ON
10
9
BRIGHTNES
LVDS_GND
12
11
LVDS_GND
CHB_TX0+
14
13
CHA_TX0+
CHB_TX0-
16
15
CHA_TX0-
LVDS_GND
18
17
LVDS_GND
CHB_TX1+
20
19
CHA_TX1+
CHB_TX1-
22
21
CHA_TX1-
LVDS_GND
24
23
LVDS_GND
CHB_TX2+
26
25
CHA_TX2+
CHB_TX2-
28
27
CHA_TX2-
LVDS_GND
30
29
LVDS_GND
CHB_TXC+
32
31
CHA_TXC+
CHB_TXC-
34
33
CHA_TXC-
LVDS_GND
36
35
LVDS_GND
CHB_TX3+
38
37
CHA_TX3+
CHB_TX3-
40
39
CHA_TX3-
1
2
39
40
