ETOP PISA-E11 - IDE Connector

PISA-E11 User`s Manual 29

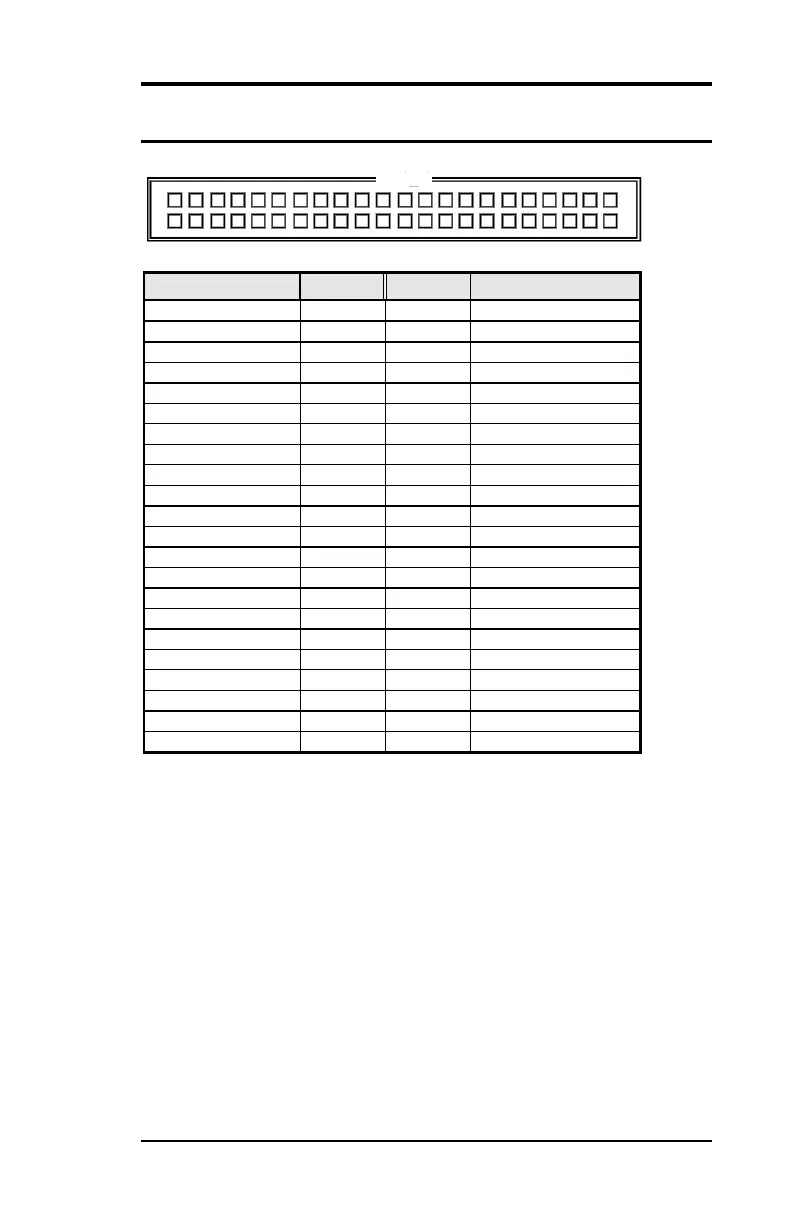

IDE Connector
Signal Name
Pin #
Pin #
Signal Name
Reset IDE
1
2
Ground
Host data 7
3
4
Host data 8
Host data 6
5
6
Host data 9
Host data 5
7
8
Host data 10
Host data 4
9
10
Host data 11
Host data 3
11
12
Host data 12
Host data 2
13
14
Host data 13
Host data 1
15
16
Host data 14
Host data 0
17
18
Host data 15
Ground
19
20
Key
DRQ
21
22
Ground
Host IOW
23
24
Ground
Host IOR
25
26
Ground
IOCHRDY
27
28
Host PU 0
DACK
29
30
Ground
IRQ14
31
32
No connect
Address 1
33
34
P66DET
Address 0
35
36
Address 2
Chip select 1
37
38
Chip select 3
Activity LED
39
40
GND
VCC
41
42
VCC
GND
43
44
NC
1
2
43
44
