ETOP PISA-E11 - SATA1.2 Connectors; VGA Connector

PISA-E11 User`s Manual 17

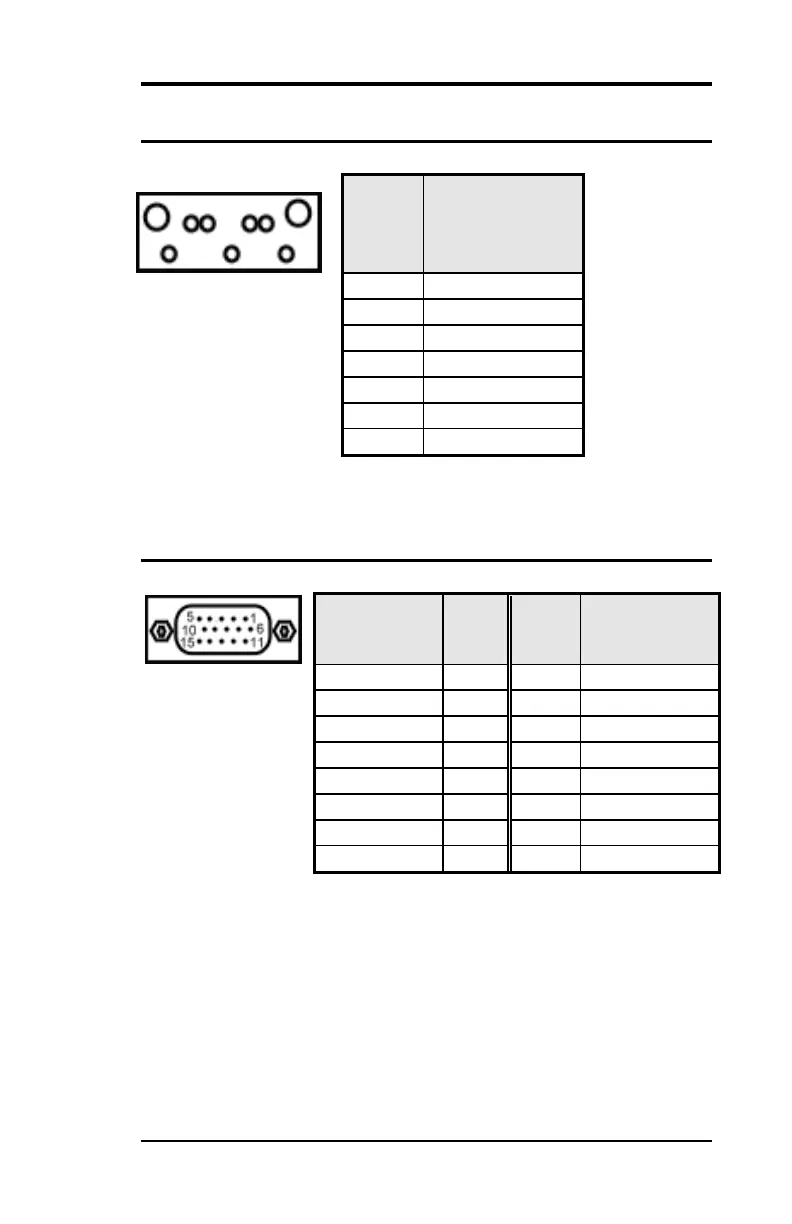

SATA1.2 Connectors
Pin #
Signal Name
1
GND
2
SATARX+
3
SATARX-
4
GND
5
SATATX-
6
SATATX+
7
GND
VGA Connector
Signal Name
Pin #
Pin #
Signal Name
Red
1
2
Green
Blue
3
4
N.C.
GND
5
6
GND
GND
7
8
GND
N.C.
9
10
GND
N.C.
11
12
DDC_DATA
HSYNC
13
14
VSYNC
DDC_CLK
15
