AUDIO | VIDEO MEDIA CONTROLLER
USER GUIDE
SETUP AND INSTALLATION
17
To join an MC Control to an MC Mix:
1. On the MC Mix, use a #2 Phillips screwdriver to remove the two silver screws
(Figure 2-3).
The screws may be tight, so you may have to use some force.

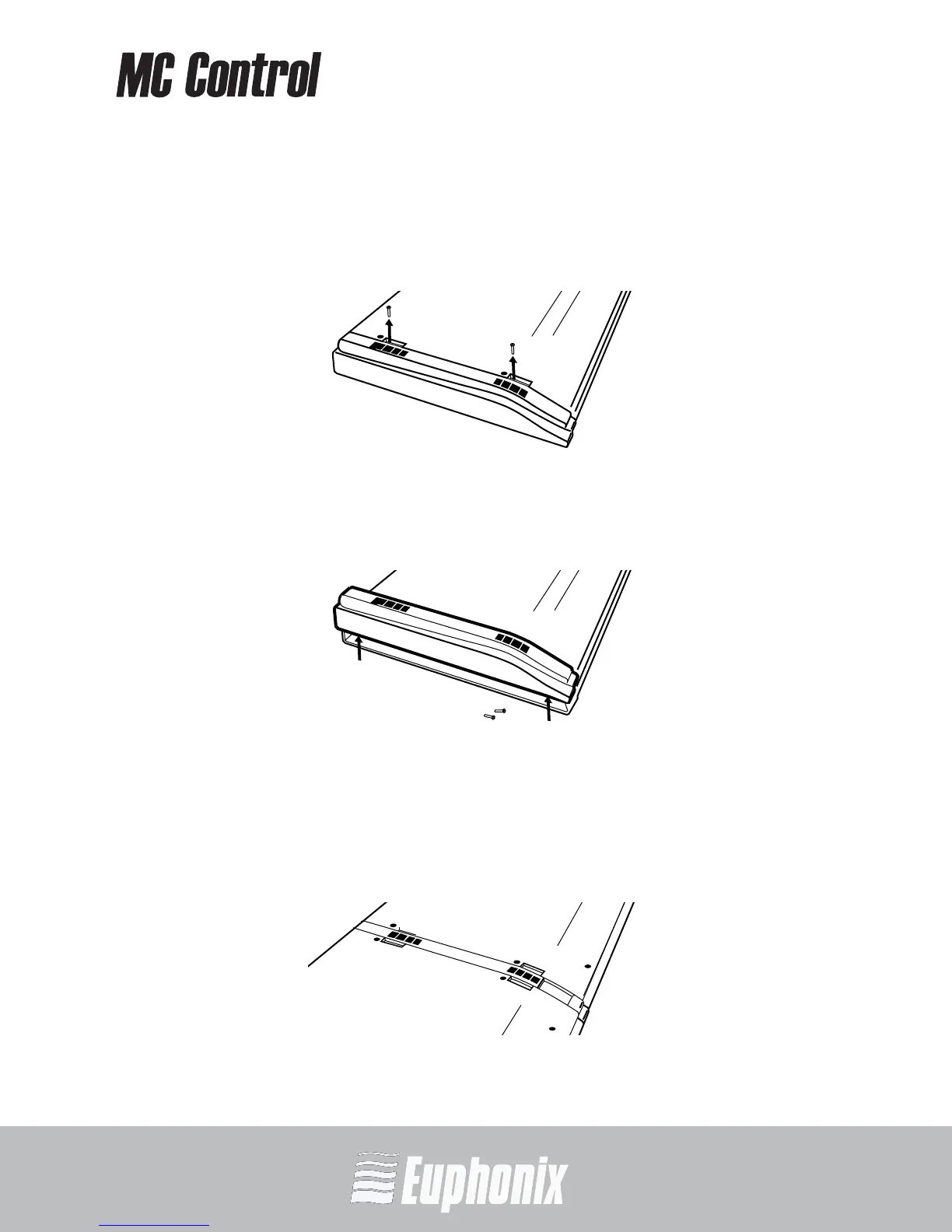

Figure 2-3 Removing screws from the bottom panel
2. Lift the black plastic connecting part and side panel up and out of the MC
Mix (Figure 2-4).
Figure 2-4 Removing connecting part and side panel
3. On the MC Control, remove the side panel (see Figure 2-2 left) on the end
where it will attach to the MC mix.
4. Slide the connecting part of the MC Control into MC Mix to attach them to-
gether (Figure 2-5).
Figure 2-5 MC Mix and MC Control attached by connecting at side panel
