Euphonix MC Control - Assignable Knob; Soft Keys Dialog; Soft Key Command Editor Configured for Assignable Knob

AUDIO | VIDEO MEDIA CONTROLLER
USER GUIDEEuControl
72
7.14.2 Assignable Knob
In some applications, the Jog Wheel can control knobs and sliders. Some appli-
cations require clicking on the control while others allow the cursor to hover
over it.
1. Select the MC Control’s Surface from the Section popup.
The Soft Keys dialog in Figure 7-12 opens.

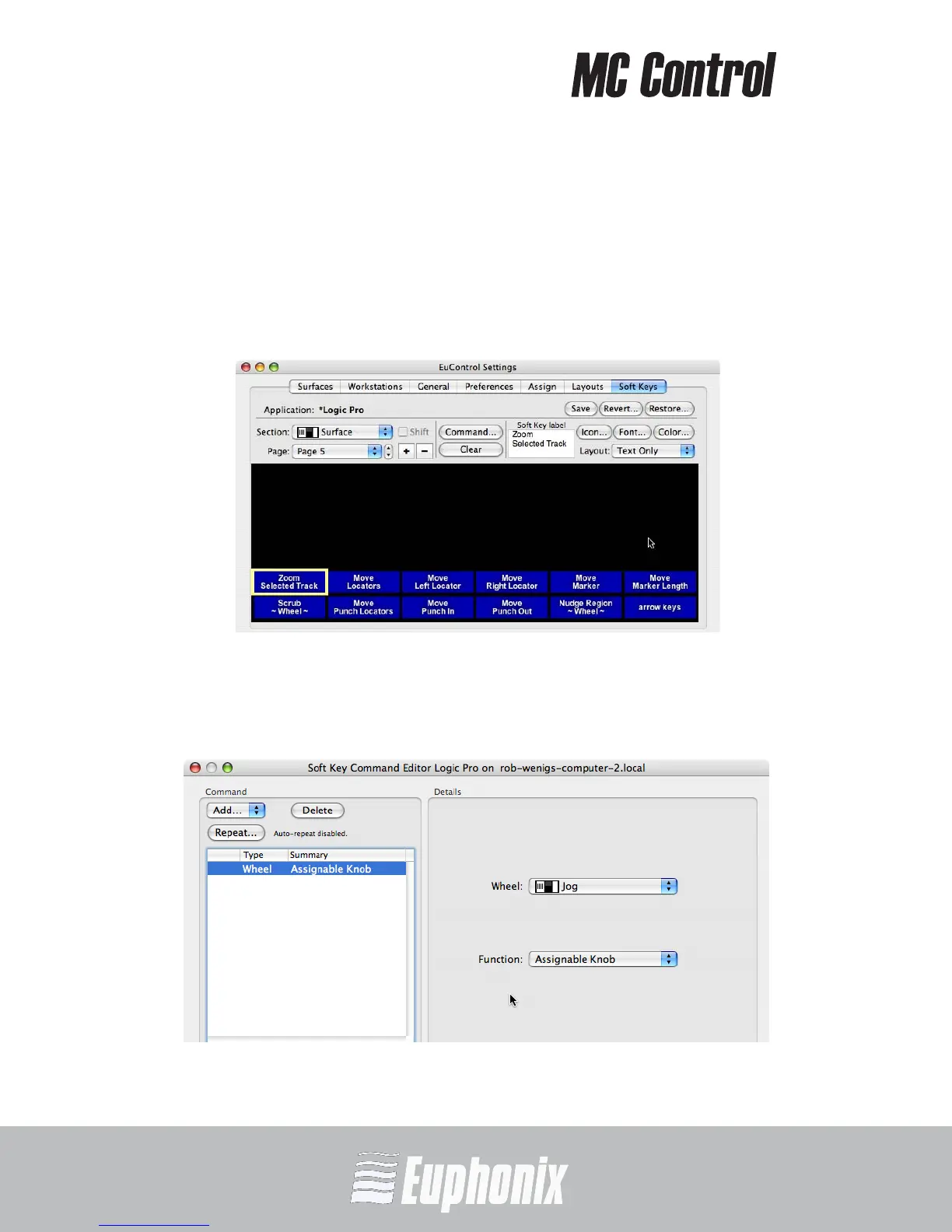

Figure 7-12 Soft Keys dialog
2. Find a a blank Soft Key and double-click it. The Soft Key Command Editor
dialog opens.
Figure 7-13 Soft Key Command Editor configured for Assignable Knob
