AUDIO | VIDEO MEDIA CONTROLLER
USER GUIDE
TOUCHSCREEN AND CONTROLS
44
5.3 Setup Screens
Less commonly used functions are found on the following Setup Touchscreens.
The Soft Keys navigate through them. The top-right Soft Key is Exit, which re-
turns to the Touchscreen last used.
5.3.1 Control Room
The Control Room Touchscreen selects the source of the control room volume
knob, and provides talkback, dim, and mute functions. This is typically used to
control Studio Monitor Express but can also control EuCon monitor sections if
an application supports it.

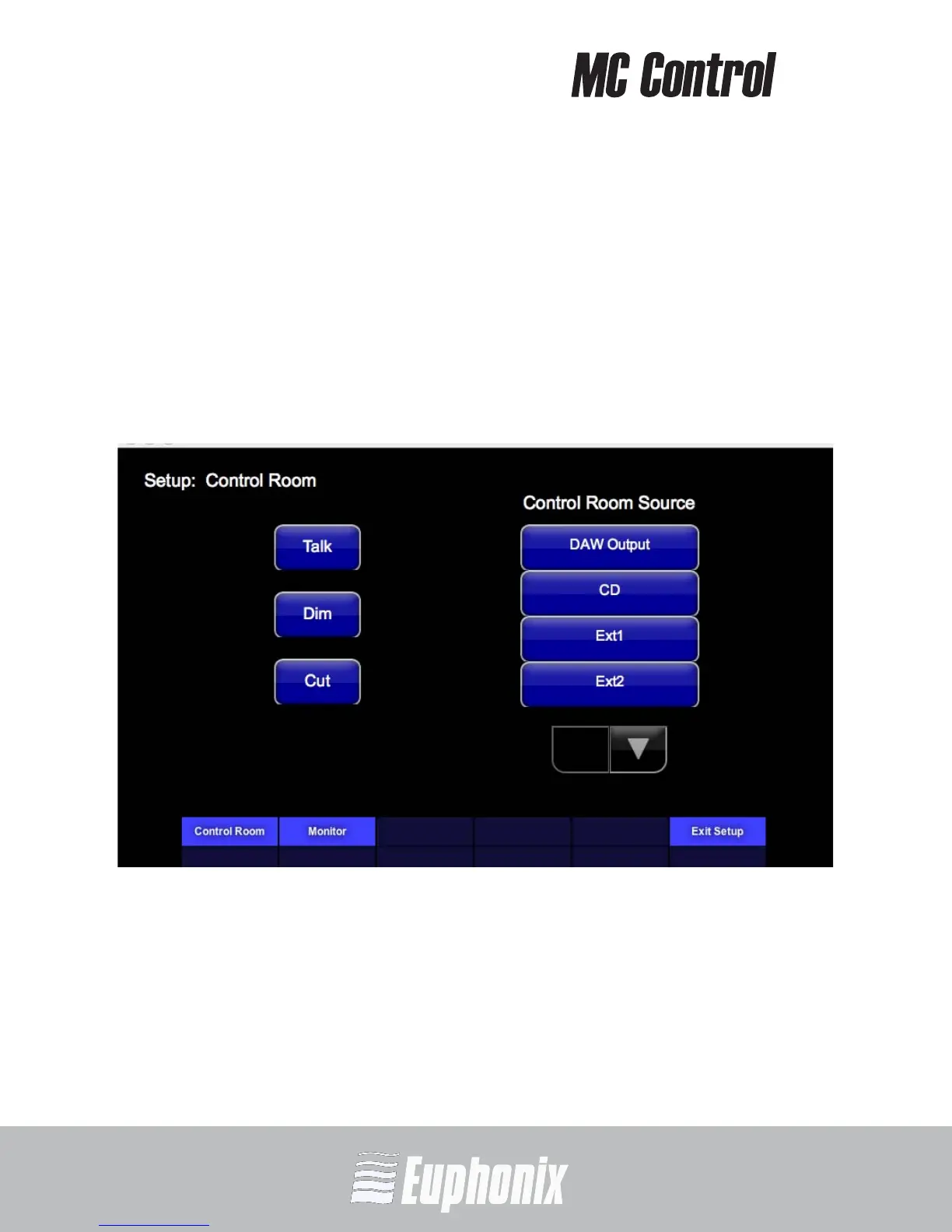

Figure 5-4 Setup: Control Room
Control Room Source: Shows the possible sources to the control room volume
control. The TS arrow buttons scroll through sources if there are more than
four. Touch to select the desired source, which is highlighted.
Talk: Engages the talk function, which is typically used to talk to talent in a dif-
ferent room. The button lights up when talk is engaged, even if engaged from
the application or Studio Monitor Express GUI.
