AUDIO | VIDEO MEDIA CONTROLLER
USER GUIDE
TOUCHSCREEN AND CONTROLS
43
Mute: A dark grey button shows the track is muted.
Sel: The track’s rectangle is highlighted in yellow to show it is selected. The last
track selected is attentioned.
TS: Scrolls down/up one line of eight tracks, if there are more lines of tracks
in the project. Press the Shift key on the MC Control or the workstation keyboard
and touch one of these buttons to scroll up/down a full page (32 tracks). The
TS buttons are disabled if there are no further tracks to display.

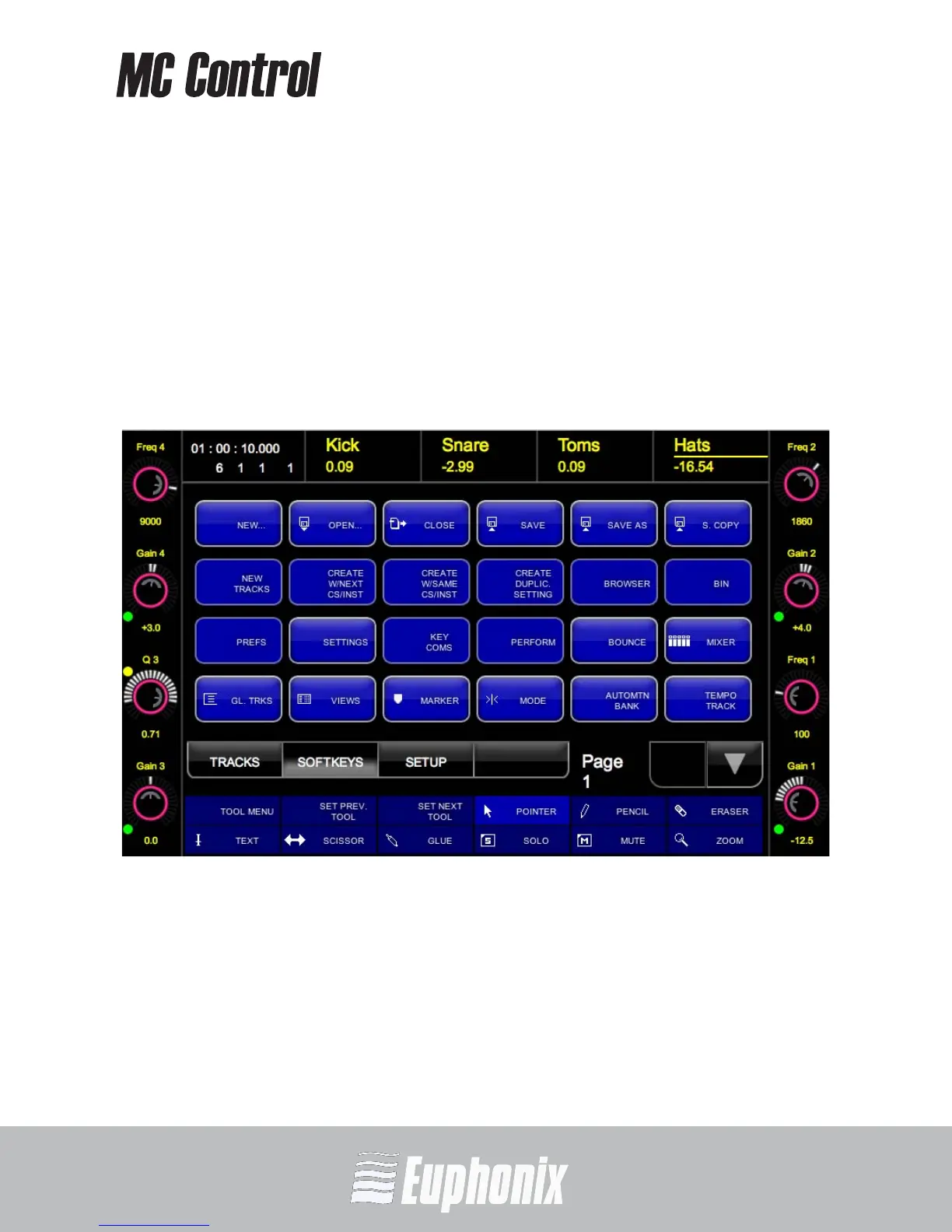

5.2 Soft Key View
Figure 5-3 Soft Key View
This view displays 24 Touchscreen Soft Keys in four lines of six each.
T scrolls forward to the next page of Soft Keys (unless on last page).
S scrolls back to the previous page of Soft Keys (unless on page 1).
Simply touch a Soft Key to execute its function. See Chapter 7: Soft Keys to learn
how to customize Soft Key pages and create your own Soft Key functions.
