AUDIO | VIDEO MEDIA CONTROLLER
USER GUIDE
TOUCHSCREEN AND CONTROLS
42
Menu Bar: Displays the Tracks view, Soft Key view, or Setup Screens on the
Touchscreen. The center of the screen changes to reflect the selected Menu
view.
5.1 Tracks View
Tracks view shows 32 tracks at a time so it allows quickly muting, soloing, arm-
ing, and selecting tracks that are not assigned to the faders.

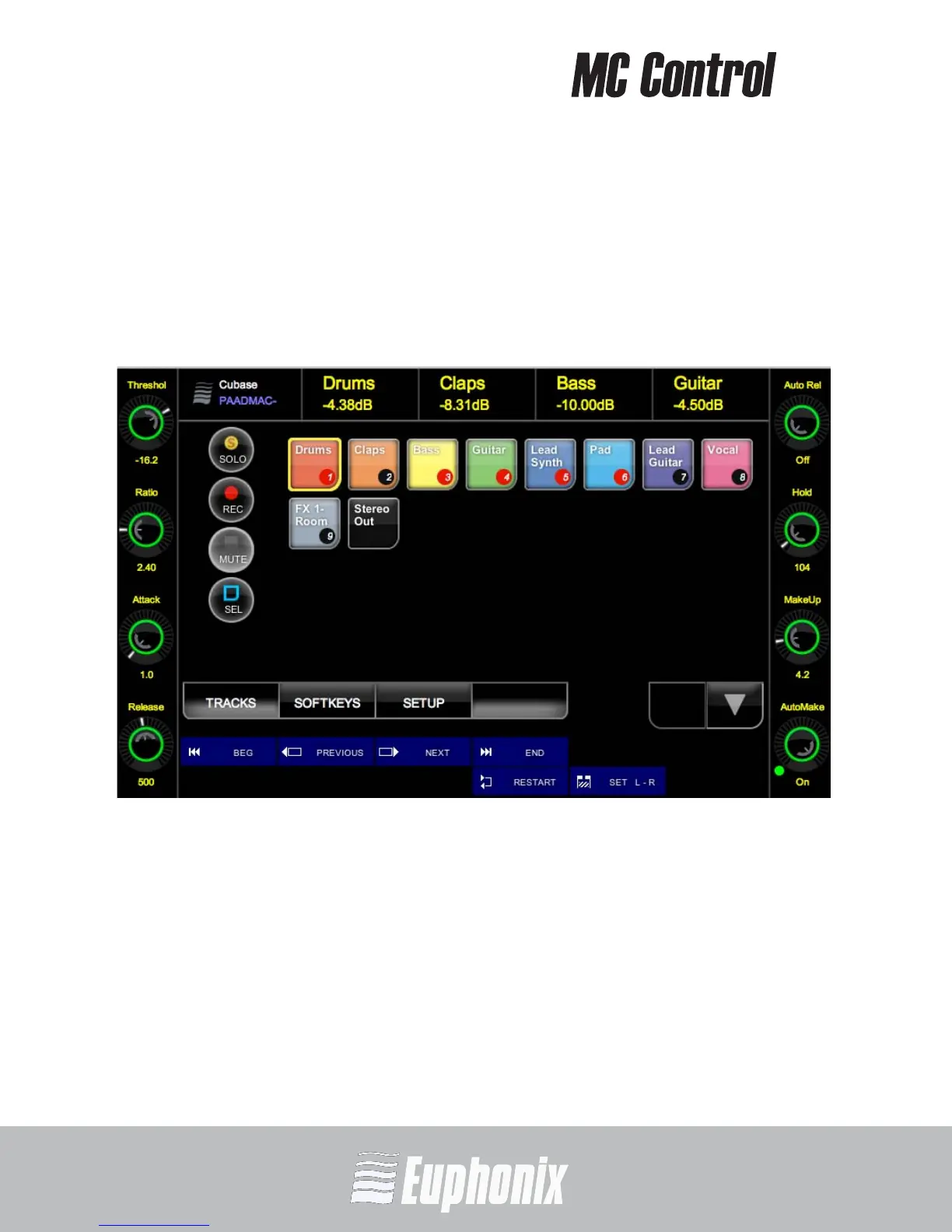

Figure 5-2 Track View
Select an operation on one of the four circular buttons on the left and then touch
one or more of the square track buttons to perform that operation on the select-
ed tracks. Touch a selected track button again to deselect it.
Solo: A yellow circle surrounding an “S” on the lower left of the track rectangle
shows the track is soloed.
Rec: A red circle around the track number in the lower right shows the track is
armed to record.
