AUDIO | VIDEO MEDIA CONTROLLER
USER GUIDE
TOUCHSCREEN AND CONTROLS
41
Chapter 5: Touchscreen and Controls
The MC Control has a wide aspect ratio Touchscreen mounted in its center.

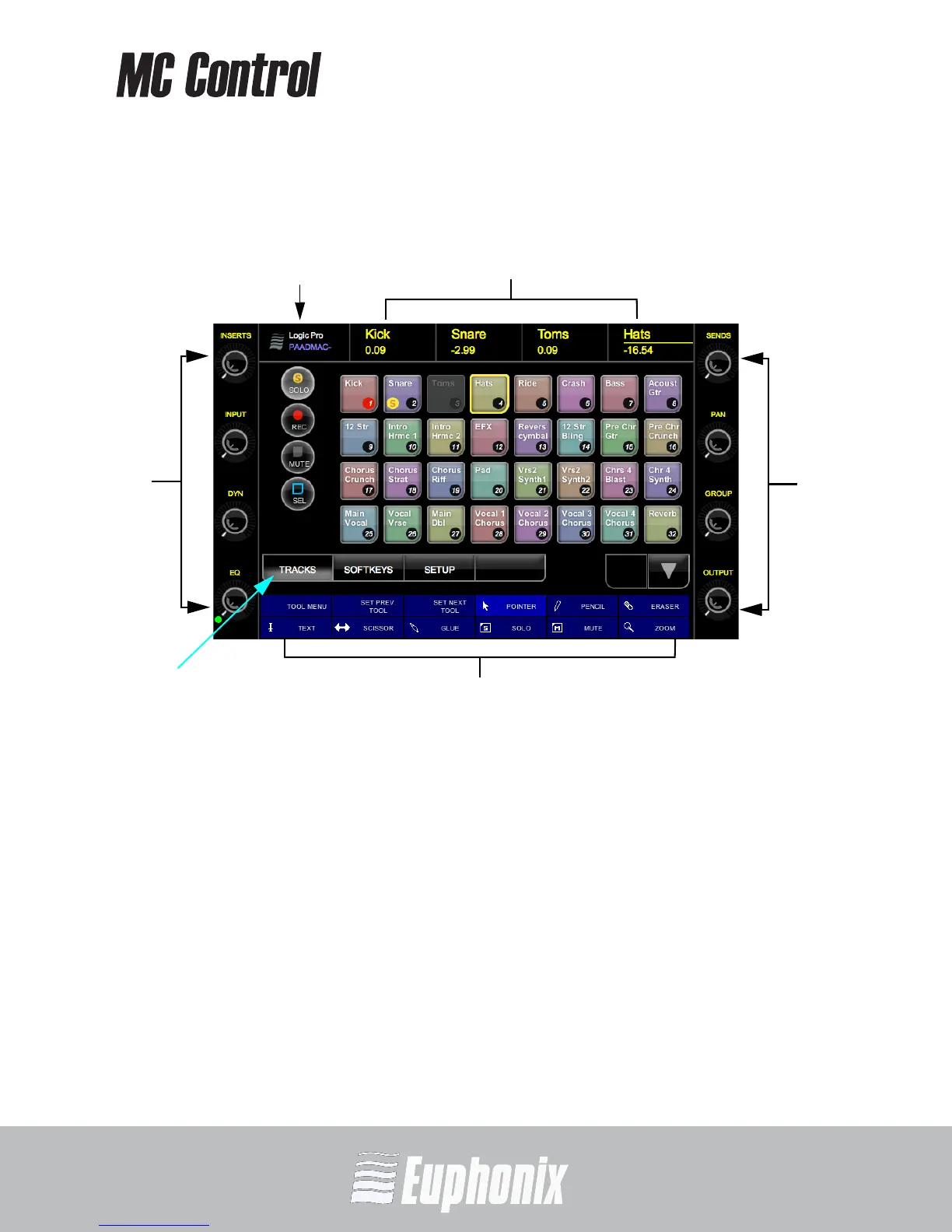

Figure 5-1 Touchscreen
The Touchscreen always shows the following:
Knob Displays: There are four on each side of the Touchscreen. They show the
current knob function for their corresponding knob.
Info Area: Shows the application and workstation name, the primary and sec-
ondary time code displays, or the attentioned track name. Touch this area to
switch between them.
Channel Strip Displays: Shows the tracks assigned to the channel strips. The at-
tentioned track is underlined in yellow.
Soft Key Labels: Shows an optional icon followed by a text label for each of the
12 Soft Keys underneath the screen.
Info Area
knob
displays
knob
displays
Channel Strip Display
Surface Soft Key Labels
menu
bar
