4.5.2 Knob Functions
Each knob has the following controls:
• Touching the knob’s image on the Touchscreen toggles the state of its pri-
mary parameter, such as EQ Band 1 on/off. When on, a small green LED
lights on the lower left.
• Pressing the Shift key and touching the knob’s image on the Touchscreen
toggles its secondary parameter (if it exists). This is used to toggle an aux
send between pre/post fader.
This can also change the knob function between two or more parameters,
such as EQ Frequency and Q.
When active, a small yellow LED lights on the upper left.
4.5.3 Knob Set Navigation Keys
Since a knob set may have more parameters than knobs, the PAGE W and
PAGE X keys scroll among them.

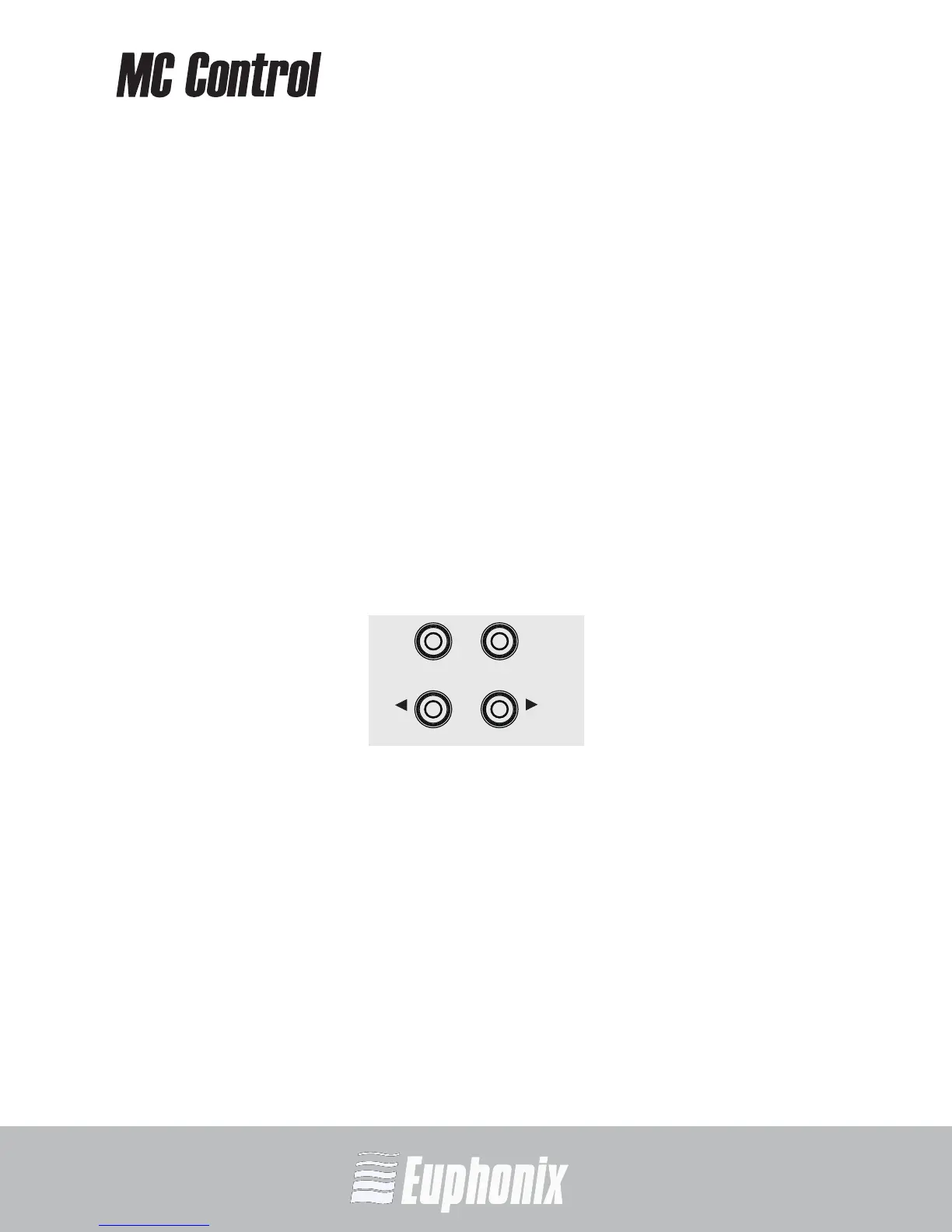

Figure 4-5 Knob Set navigation keys
PAGE W
Press the PAGE W key to scroll to the previous page. When on the first page,
pressing PAGE
W key does nothing. The PAGE W key lights yellow when there is
a previous page to go to.
PAGE
X
Press the PAGE X key to scroll to the next page. When on the last page, pressing
the PAGE X key does nothing. The PAGE X key lights yellow when there is a next
page to go to.
CFG
PAGE
W
ORKSTATION
APPLICATION
TOP
BACK
PAGE
CFG
To Next Page
