AUDIO | VIDEO MEDIA CONTROLLER
USER GUIDE
TOUCHSCREEN AND CONTROLS
45
Dim: Dims the control room volume (lit when dim is active).
Cut: Mutes the control room volume (lit when cut is active).
5.3.2 Monitor
The Monitor Touchscreen selects the source of the monitor volume knob or
mutes monitor A. Holding down the Shift key and turning the control room knob
changes the volume of Monitor A in Studio Monitor Express or the attached ap-
plication if it supports a EuCon monitor section.

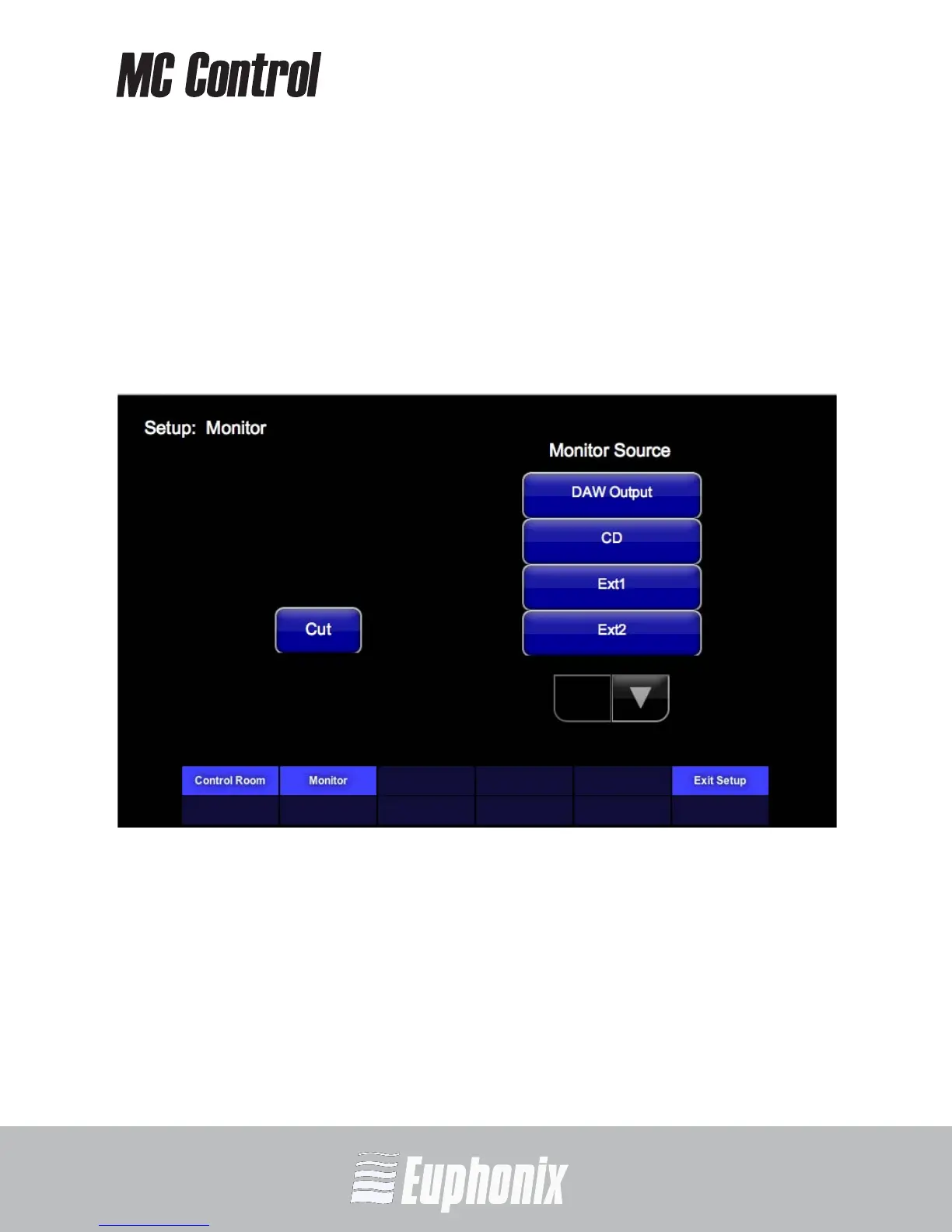

Figure 5-5 Setup: Monitor
Monitor Source: Lists the possible sources to the monitor volume control. The
TS arrow buttons scroll through sources if there are more than four. Touching
one of the sources highlights it and makes it the current monitor source.
Cut: Mutes the monitor volume (lit when cut is active).
