AUDIO | VIDEO MEDIA CONTROLLER
USER GUIDEEuControl
68
7.14 Wheel Commands
The Jog Wheel can be assigned different commands than the typical jog and
shuttle functions using additional Wheel Commands. It is important to note that
there are two steps:
The desired Wheel Command must be selected and assigned to a Soft Key.
That Soft Key must be pressed to invoke the function.
The following examples demonstrate this process. These examples use Logic
Pro so the dialogs for your application may look different.
Be careful because these examples can overwrite a useful Soft Key if you click
the Save button. When finished, click Restore to restore the Soft Key assign-
ments to the state they were in before you edited them. If you did click Save, you
can revert to the factory default assignments by clicking Revert.
7.14.1 Custom Jog Command
Turning the Jog Wheel can insert key strokes into an application. This example
inserts up and down arrows when the wheel is turned left and right, respectively.
In most audio applications, this scrolls through the displayed tracks.
1. Select MC Transport’s Wheel from the Section popup menu.
Note that you must select the MC Transport wheel icon. The Soft Key Wheel
dialog opens.

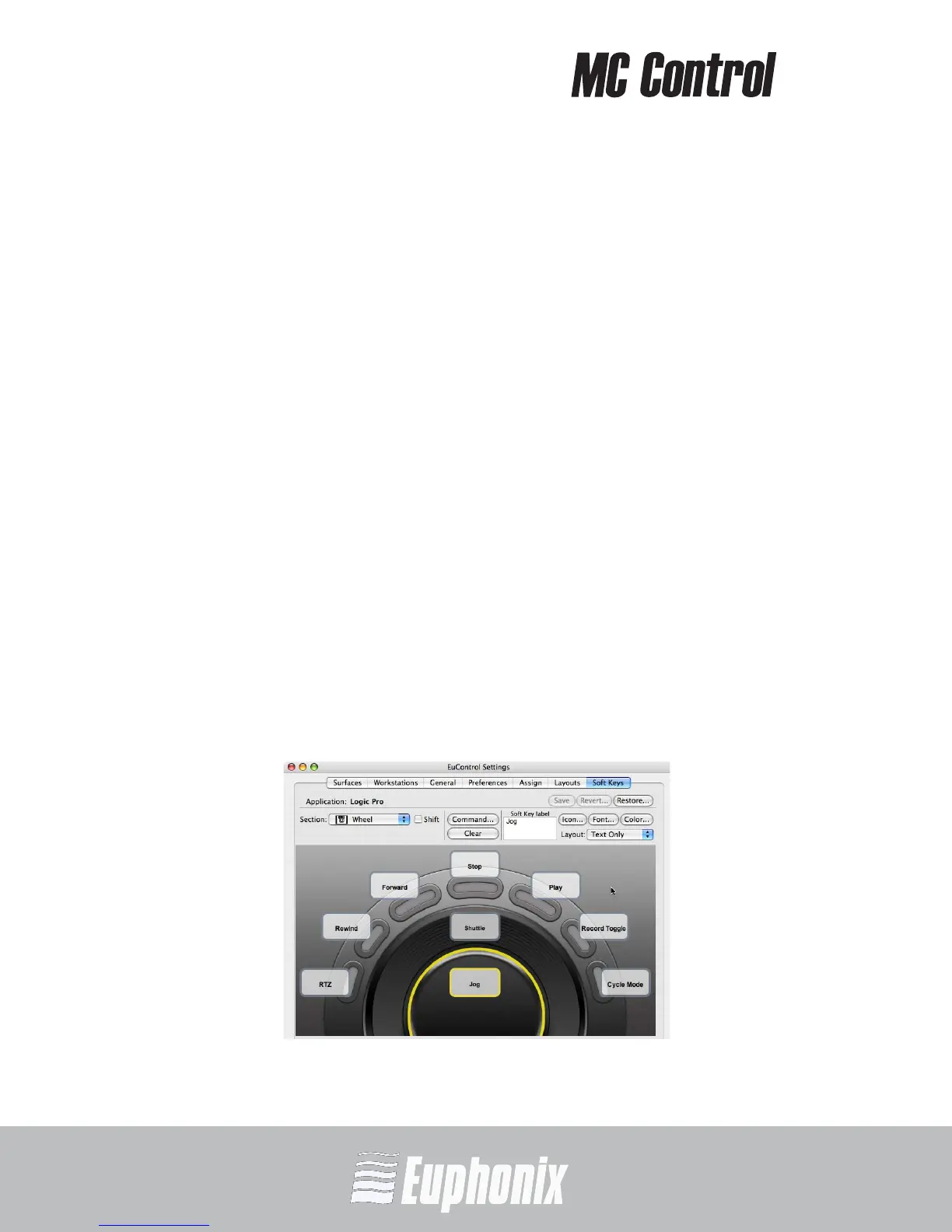

Figure 7-7 Soft Key Wheel dialog
