INTER-DSP COMMUNICATION FOR H8000,ORVILLE
H7600 users should move ahead - this is for H8000 and Orville only.
Control signals can be sent from one DSP to the other in Orville! The
c_bridge module accepts four control signal inputs. Control signal
outputs that are connected to these inputs appear at the other DSP’s
“global control outputs” and at the control outputs of a c_bridge
module in the other DSP. A DSP’s global control outputs are the four
blue squares on the left side of the screen.

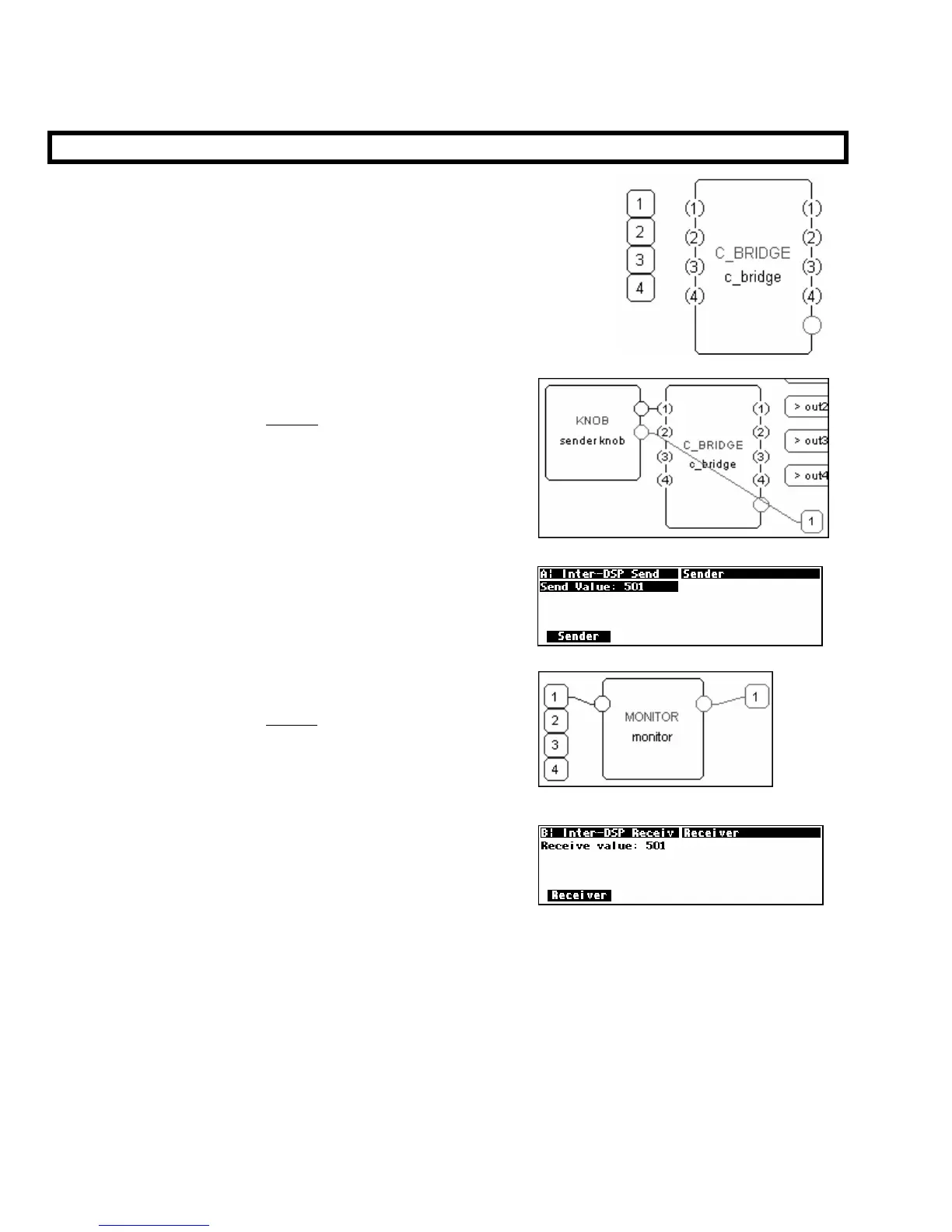

For example, load the program Inter-DSP Send from the
“Programming” bank into DSP A. A knob module is
connected to the first input of a c_bridge module in as
shown to the right.
Additionally, the knob module’s userobject output is
connected to the head module so that the knob module’s
parameter shows up in the PARAMETER area as shown to the
right.
Now load the program Inter-DSP Receive from the
“Programming” bank into DSP B. A monitor module is
connected to global control output 1.
Additionally, the monitor module’s userobject output is
connected to the head module so that it shows up in the
PARAMETER area as shown to the right.
You can see for yourself that changing the Send Value in DSP A alters the Receive value in DSP B. Of course,
you could add a c_bridge module in DSP B to send control signals to DSP A at the same time that
DSP A is sending control signals to DSP B! This function can be used to write huge programs that span
both DSPs.
