ECOR960 4F2 / 8F2 / 16F2
2

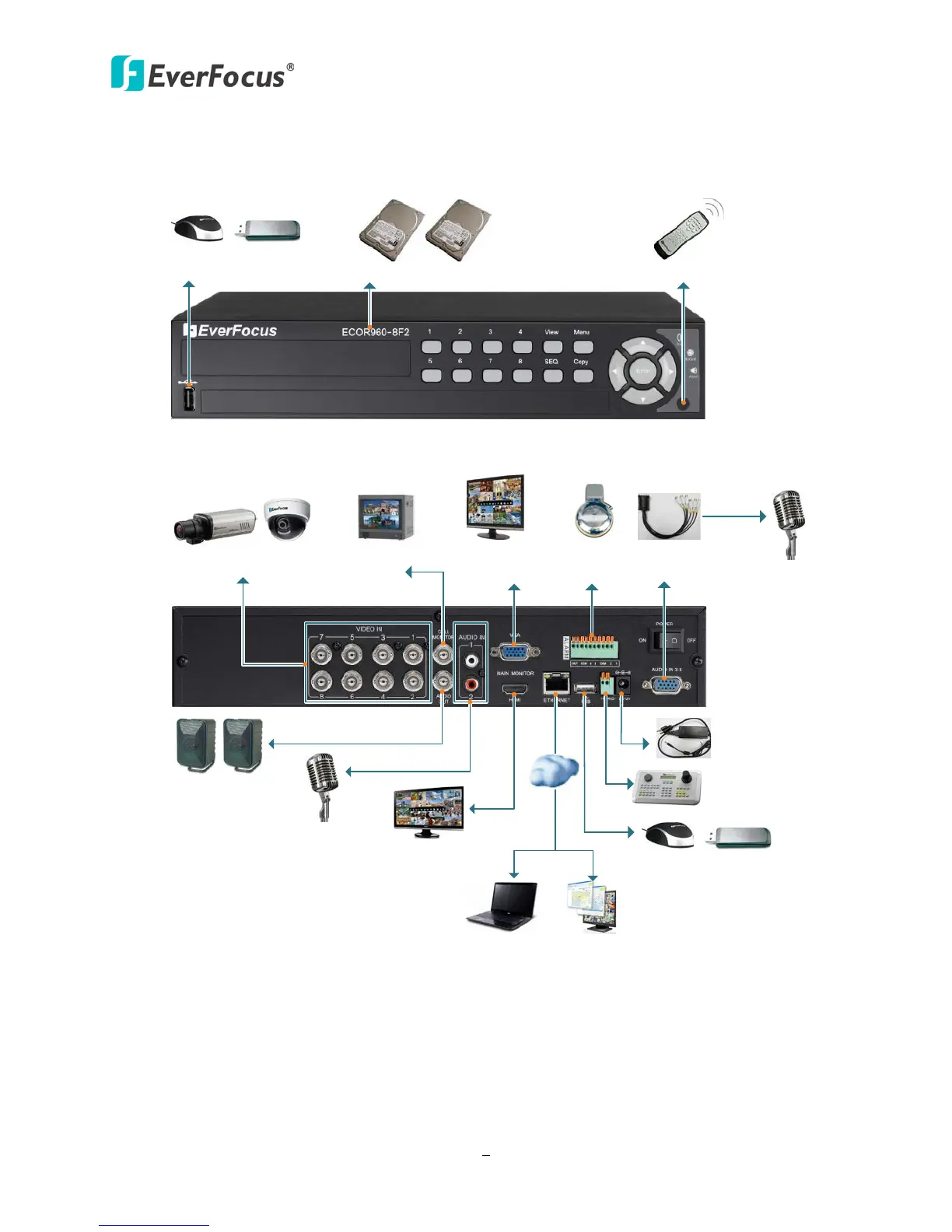

ECOR960 4F2 / 8F2 System Diagram
IR Remote Control
a
*
Internal 3
.5
"
HDDs (
Optional
)
*
Analog Camera
Line Level
Audio Out
Line Level
Audio In 1
~2
Alarm In
/ Out
Main Monitor
(HDMI)
Call Monitor
(BNC
)
Web Remote Client
PowerVideo
Plus (CMS)
Mouse or USB Memory Stick
Line Level
Audio Out
Main Monitor
(VGA)
Power Supply
RS-485 Device
*Line Level
Audio In 3~8
Audio
Cable
Mouse or USB
Memory Stick
Network
Figure 1-1
* This diagram uses ECOR960 8F2 as an example. The ECOR960 4F2 only has 4 Video Inputs, 4
Audio Inputs, and supports only 1 hard disk drive.
