EverFocus ECOR960 4F2 - Connecting the DVR to the Network

ECOR960 4F2 / 8F2 / 16F2
13

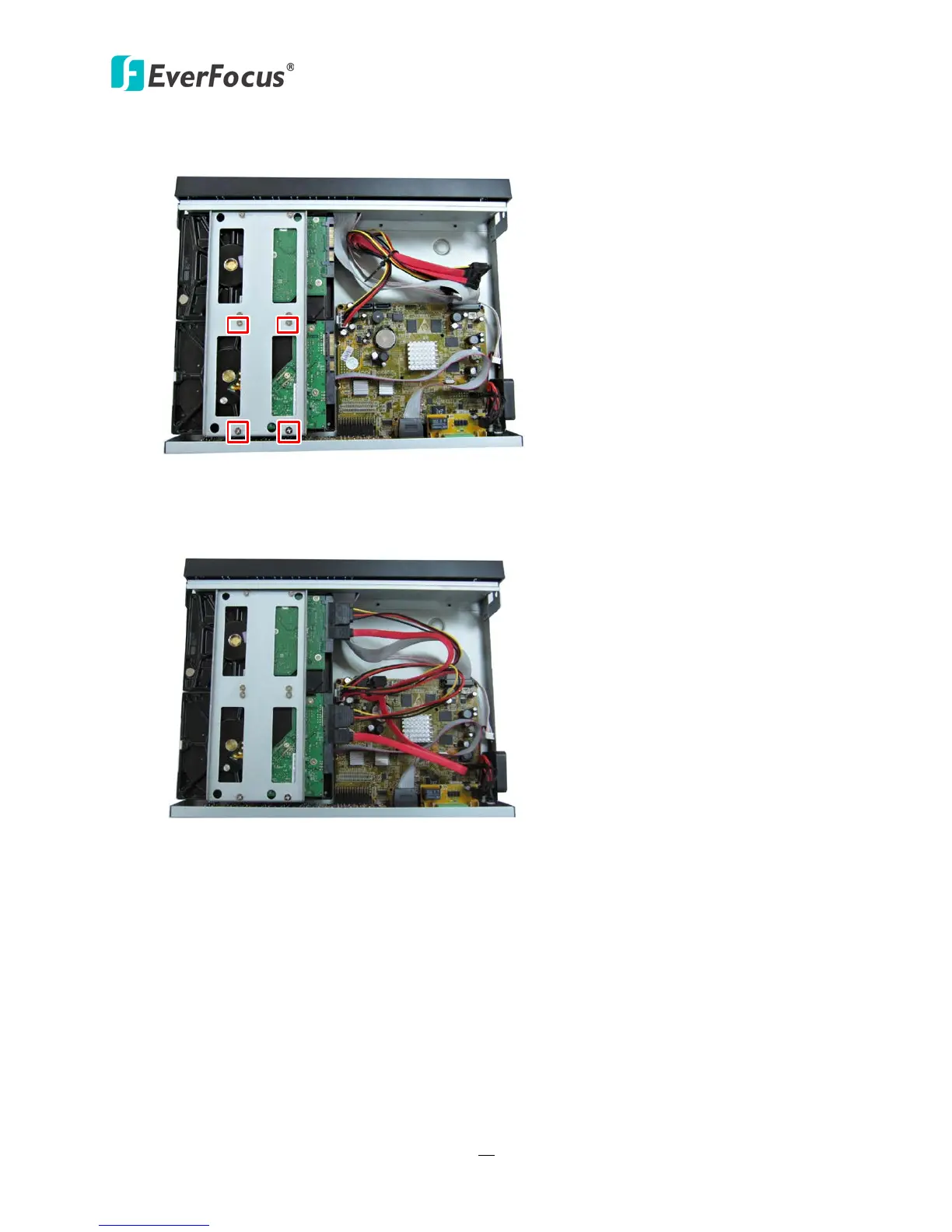

4. Follow the steps above to install the other HDD.
Figure 2-9
5. Connect the internal SATA cable to the SATA port of the HDD and the internal power cable
to the HDD as the Figure 2-4 and Figure 2-5.
Figure 2-10
6. Screw back the hosing to the DVR.
7. Format the HDD after the installation is completed.
