Note:

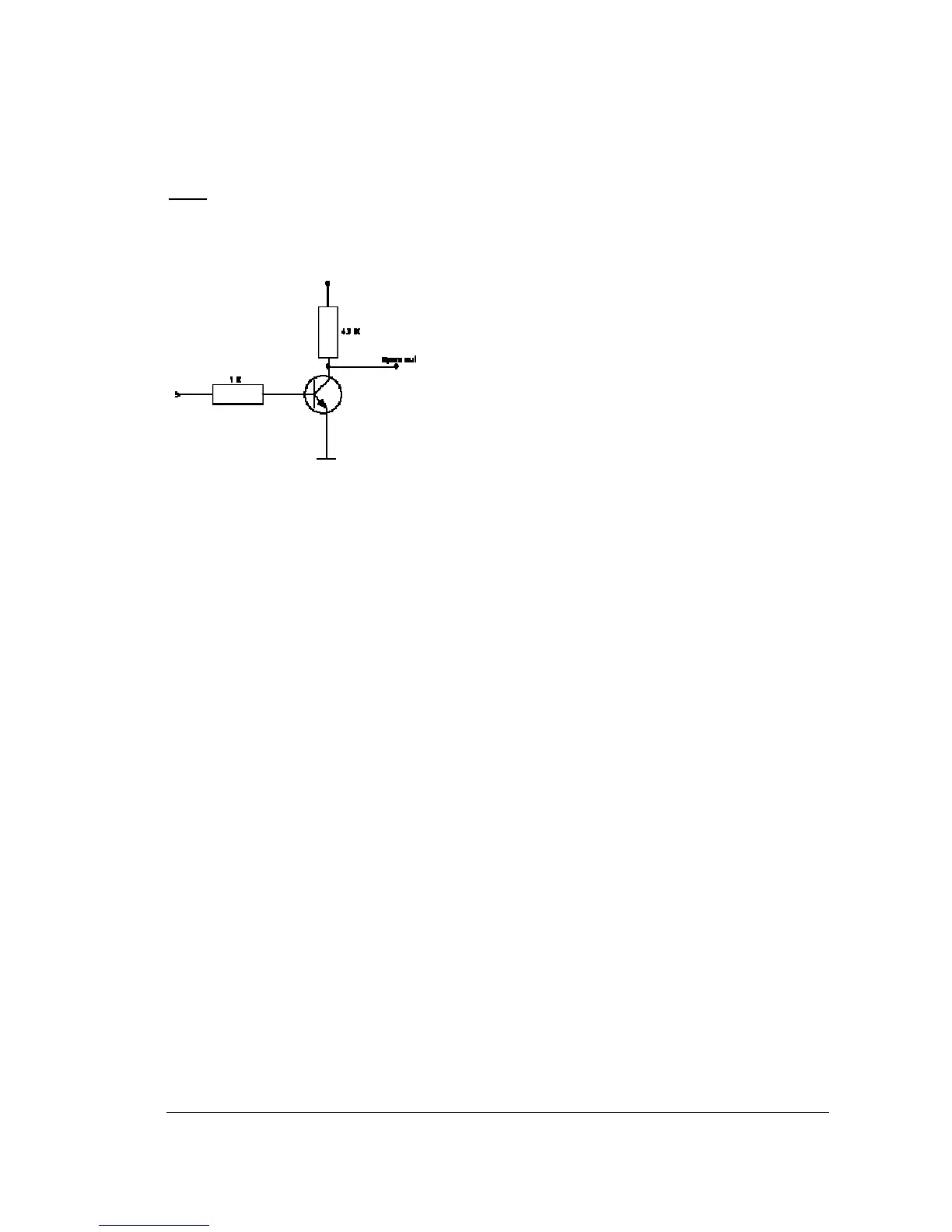

SPARE_OUT: System error output. TTL-level 5VDC indicates "System Okay" status.
The contact will switch to open state, if one (ore more) of below listed events appears:
a) HDD full (If overwrite mode in RECORD menu is set to STOP)
b) No HDD
c) Over-temperature HDD
d) Power Loss
e) Cooler fan fault
f) Video Loss
g) Record off
Output level:
HIGH (5 V DC): System okay
Open state: System error
SPARE_IN: N.O. Control input for playback function, playback is active as long contact
is closed.
