XRF1/XRF1A 16x16 RF Router Manual
XRF1 - 7-2 Revision 1.2 VISTALINK

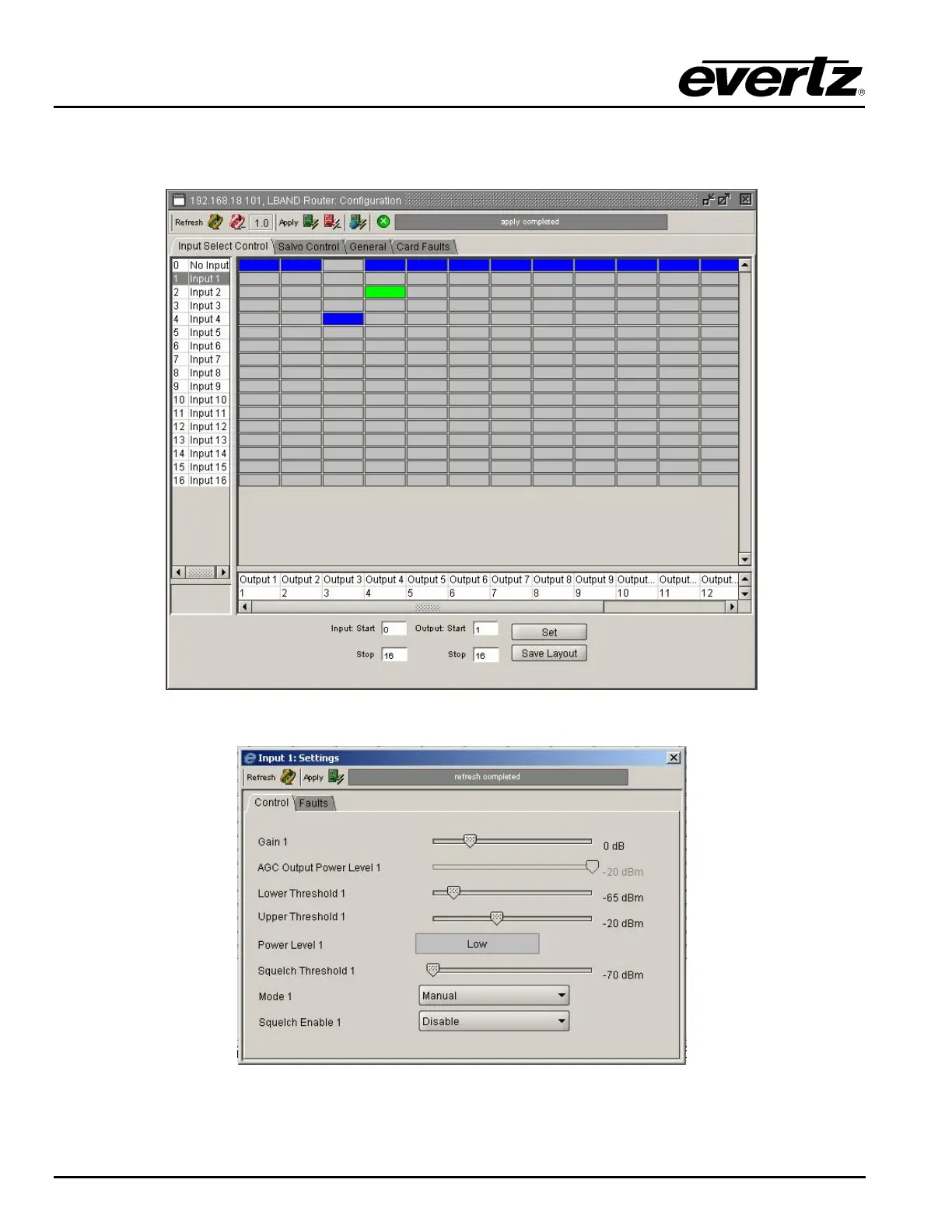

The following screen capture shows the VistaLINK
®
crosspoint control matrix and the configuration menu
available for each router input. For more information on the VistaLINK
®
suite of products, please contact
an Evertz sales representative or visit www.evertz.com.
Figure 7-1: VistaLINK
®
Configuration Menu for each Router Input
Figure 7-2: VistaLINK
®
Crosspoint Cross Matrix
