Excell EX-2001 Racer Plus - Analogue Current; Voltage Output Interface

EX-2001 Plus v1.3 SME300000060
26
EXCELL PRECISION CO., LTD.
DATA OUT
A- A+
DATA OUT
J1

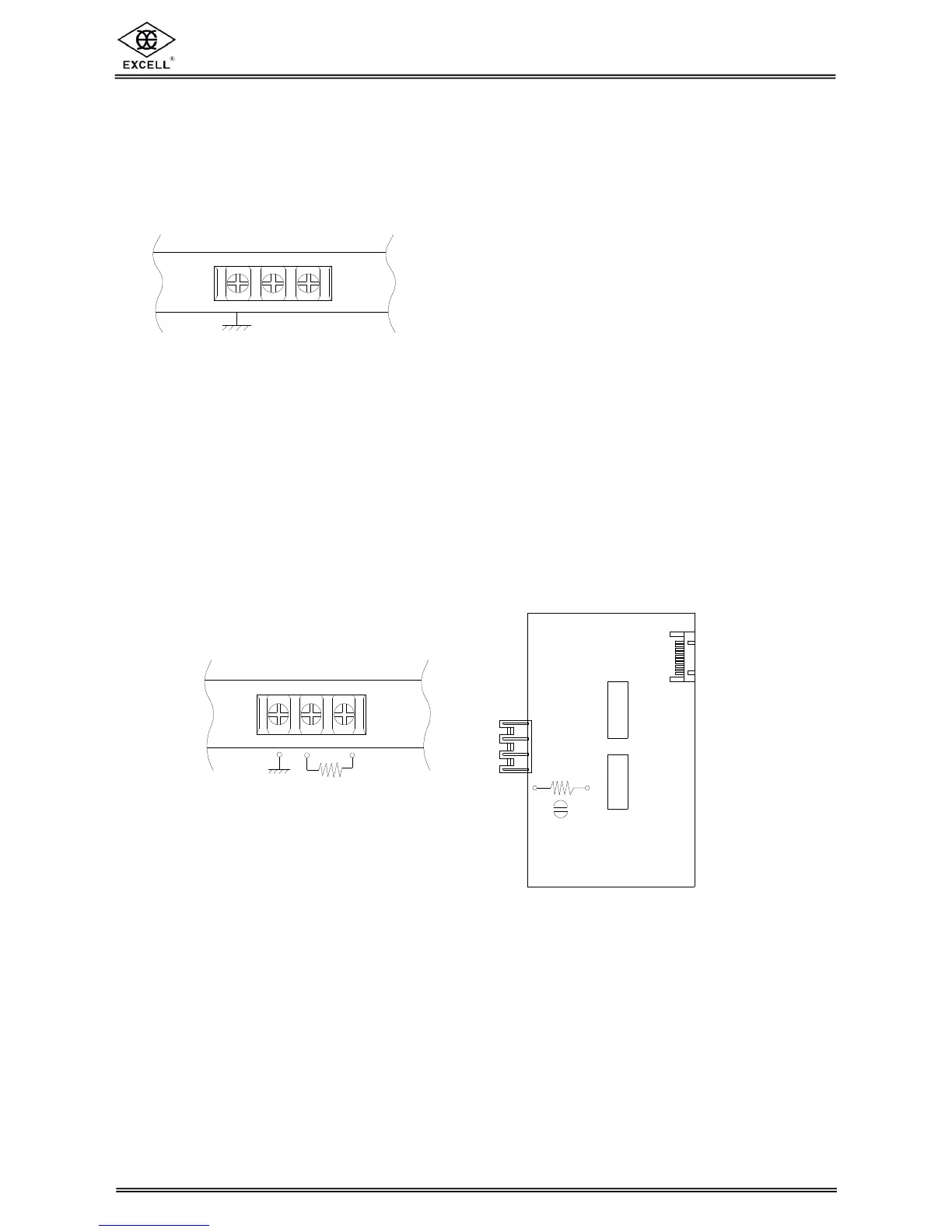

7-3 OP-03 ANALOGUE CURRENT / VOLTAGE OUTPUT
INTERFACE
2 Connections
Interface specification
Analogue current output : 0 ~ 20 mA
Load resister : 0 ~ 550 Ω
Resolution : 12 bit
2 Refer to Chapter 9 Functions Table to set FUNC 85 ~ FUNC 89
2 Voltage output
J1 short if the voltage output is 0 ~ 10V.
J1 open if the current output is 4 ~ 20mA.
