Excell EX-2001 Racer Plus User Manual

EX-2001 Plus v1.3 SME300000060
31
EXCELL PRECISION CO., LTD.
1
2
3
4
DATA/
CLK
GND
FG
RxD
TxD
SG
+ AC
- AC
C.LOOP
C.LOOP
1
2
3
4
5
7
12
13
CONNECTION

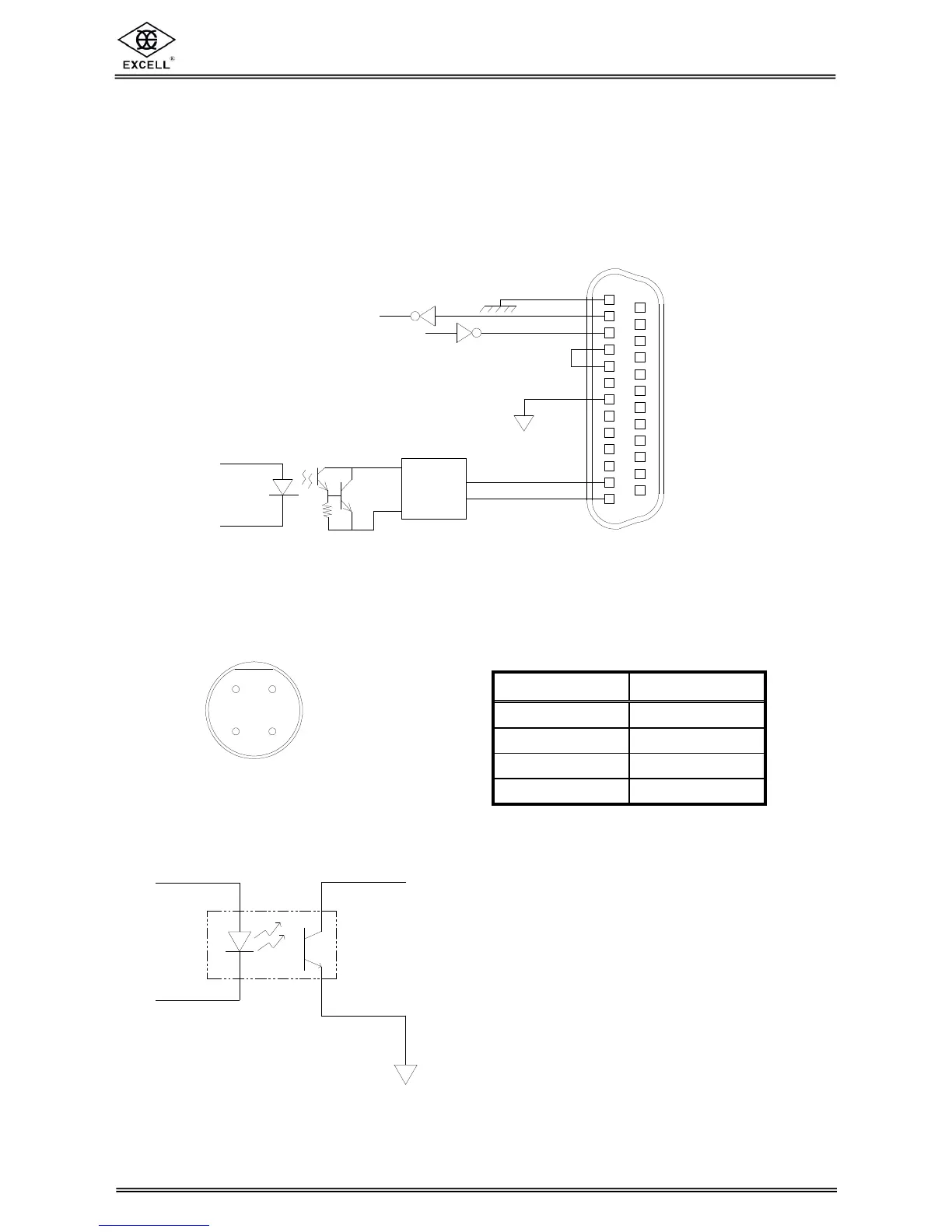

7-6 OP-07 RS-232, CURRENT LOOP & DATA CLOCK OUTPUT
2 RS-232 / Current Loop
RS-232C is a bi-directional output/input; Current Loop is one-way output only,
and the output data format is the same as RS-232.
2 Data Clock serial output
FUNC. 70 should be “ 0 ”
Pin Position
Function
1 + 5V
2 DATA
3 CLK
4 GND
Inner Connection
