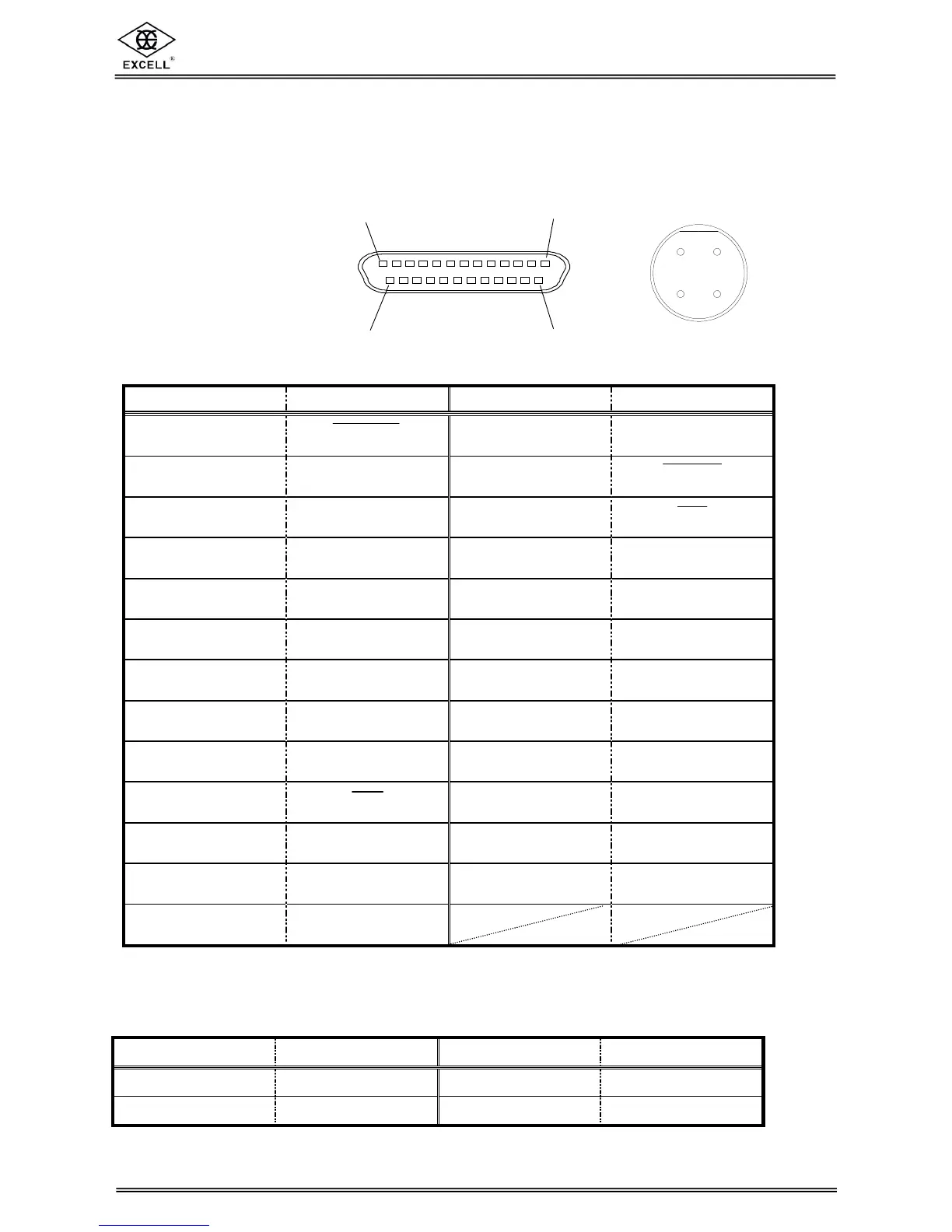

7-4 OP-05 PARALLEL PRINTER OUTPUT & RS-232 & CURRENT

LOOP

2 Pin assignment

Pin number Function Pin number Function

1 STROBE 14 NC

2 D0 15 ERROR

3 D1 16 INIT

4 D2 17 NC

5 D3 18 SG

6 D4 19 SG

7 D5 20 SG

8 D6 21 SG

9 D7 22 SG

10 ACK 23 SG

11 BUSY 24 SG

12 NC 25 SG

13 NC

2 Refer to Chapter 9 Functions Table to set FUNC 90 ~ FUNC 99

2 RS-232 pin position

2Refer to Chapter 9 Functions Table to set FUNC. 60, 62, 63, 64

Pin number Function Pin number Function

1 TXD 3 C. LOOP1

2 SG 4 C. LOOP2
